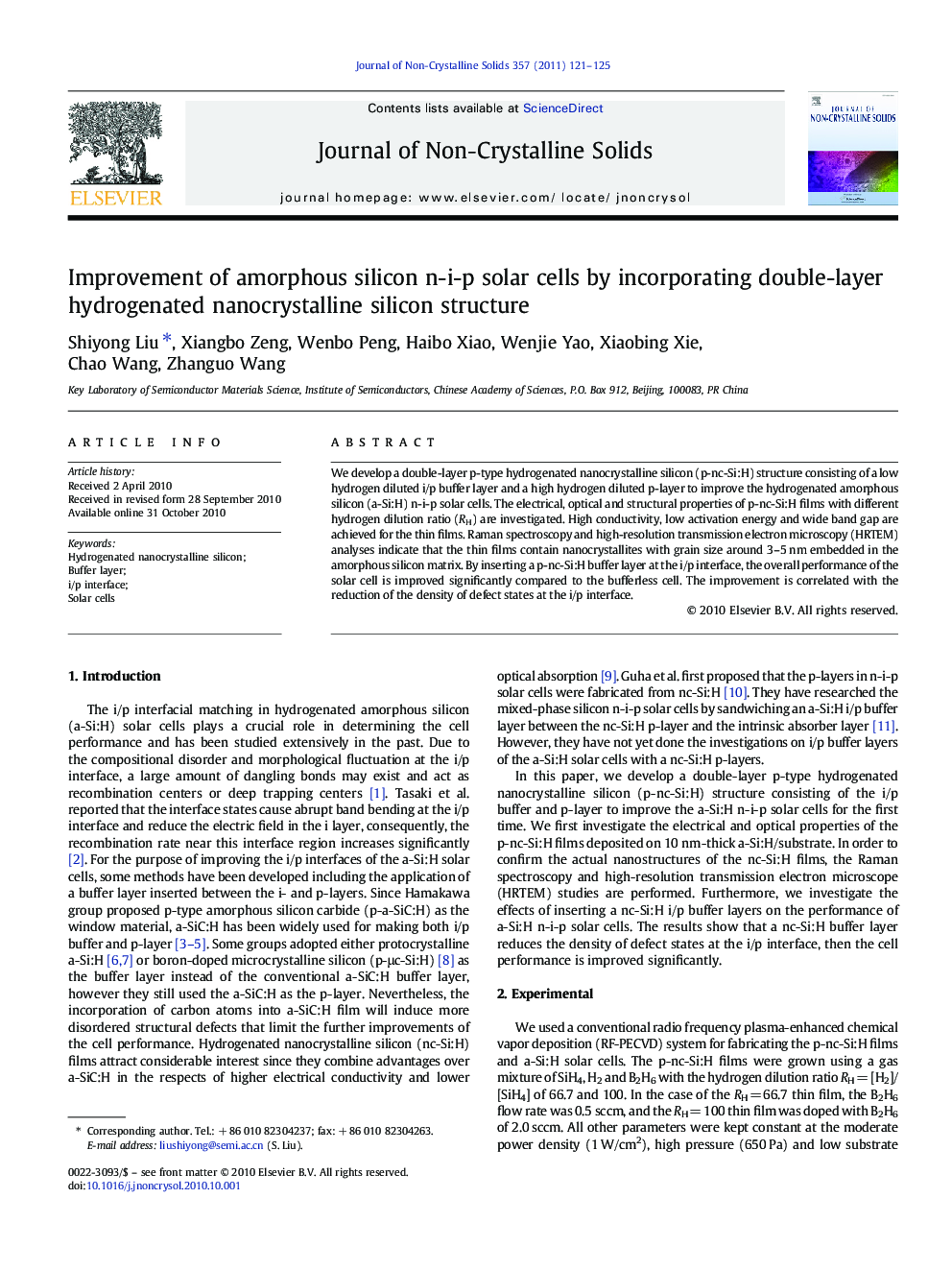

Improvement of amorphous silicon n-i-p solar cells by incorporating double-layer hydrogenated nanocrystalline silicon structure

We develop a double-layer p-type hydrogenated nanocrystalline silicon (p-nc-Si:H) structure consisting of a low hydrogen diluted i/p buffer layer and a high hydrogen diluted p-layer to improve the hydrogenated amorphous silicon (a-Si:H) n-i-p solar cells. The electrical, optical and structural properties of p-nc-Si:H films with different hydrogen dilution ratio (RH) are investigated. High conductivity, low activation energy and wide band gap are achieved for the thin films. Raman spectroscopy and high-resolution transmission electron microscopy (HRTEM) analyses indicate that the thin films contain nanocrystallites with grain size around 3–5 nm embedded in the amorphous silicon matrix. By inserting a p-nc-Si:H buffer layer at the i/p interface, the overall performance of the solar cell is improved significantly compared to the bufferless cell. The improvement is correlated with the reduction of the density of defect states at the i/p interface.

Research Highlights
► We develop a double-layer p-nc-Si:H structure to improve the a-Si:H solar cell for the first time.
► The nc-Si:H buffer layer improves the Voc and the short wavelength response.
