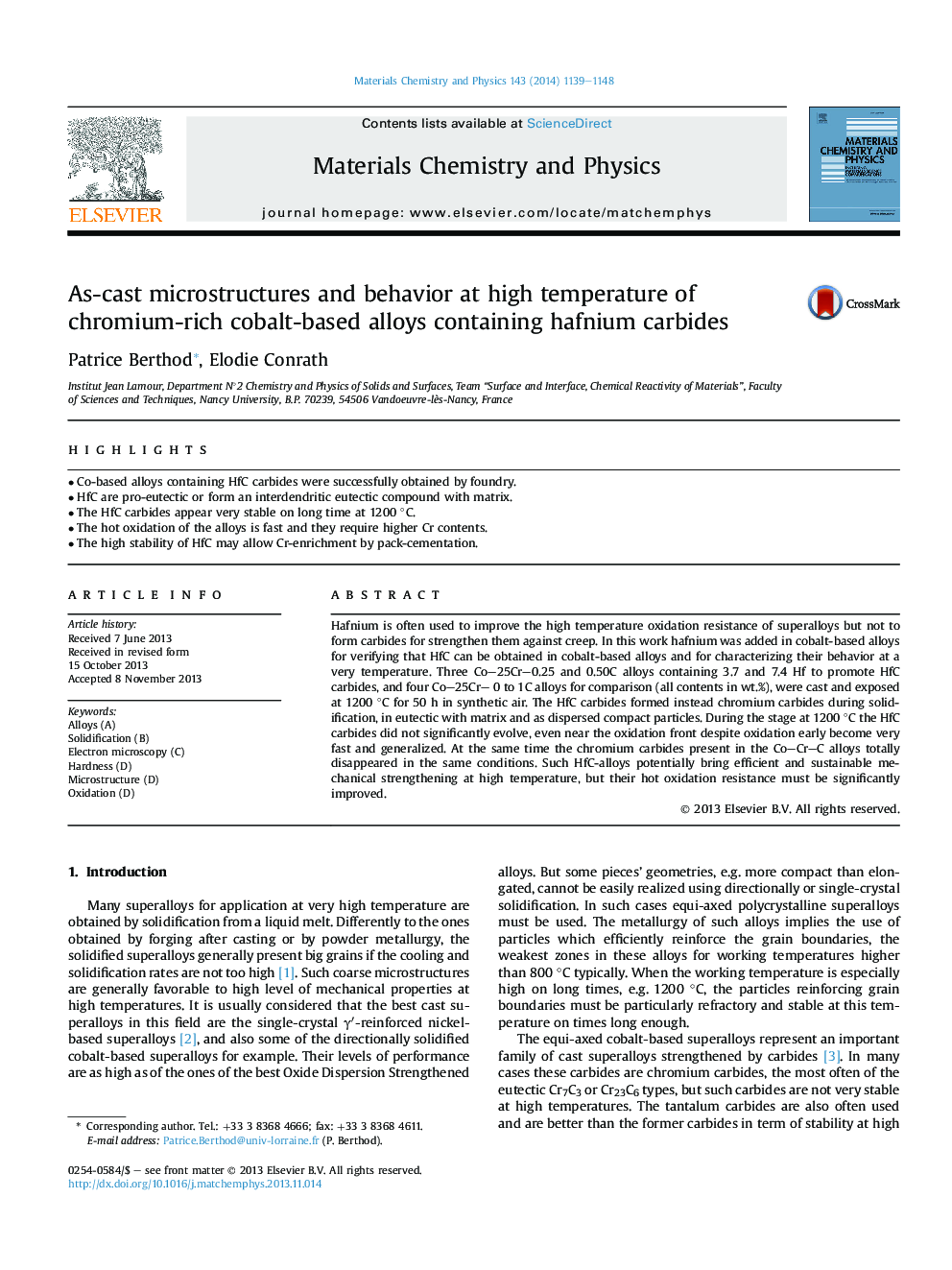

As-cast microstructures and behavior at high temperature of chromium-rich cobalt-based alloys containing hafnium carbides

Hafnium is often used to improve the high temperature oxidation resistance of superalloys but not to form carbides for strengthen them against creep. In this work hafnium was added in cobalt-based alloys for verifying that HfC can be obtained in cobalt-based alloys and for characterizing their behavior at a very temperature. Three Co-25Cr-0.25 and 0.50C alloys containing 3.7 and 7.4 Hf to promote HfC carbides, and four Co-25Cr- 0 to 1C alloys for comparison (all contents in wt.%), were cast and exposed at 1200 °C for 50 h in synthetic air. The HfC carbides formed instead chromium carbides during solidification, in eutectic with matrix and as dispersed compact particles. During the stage at 1200 °C the HfC carbides did not significantly evolve, even near the oxidation front despite oxidation early become very fast and generalized. At the same time the chromium carbides present in the Co-Cr-C alloys totally disappeared in the same conditions. Such HfC-alloys potentially bring efficient and sustainable mechanical strengthening at high temperature, but their hot oxidation resistance must be significantly improved.
