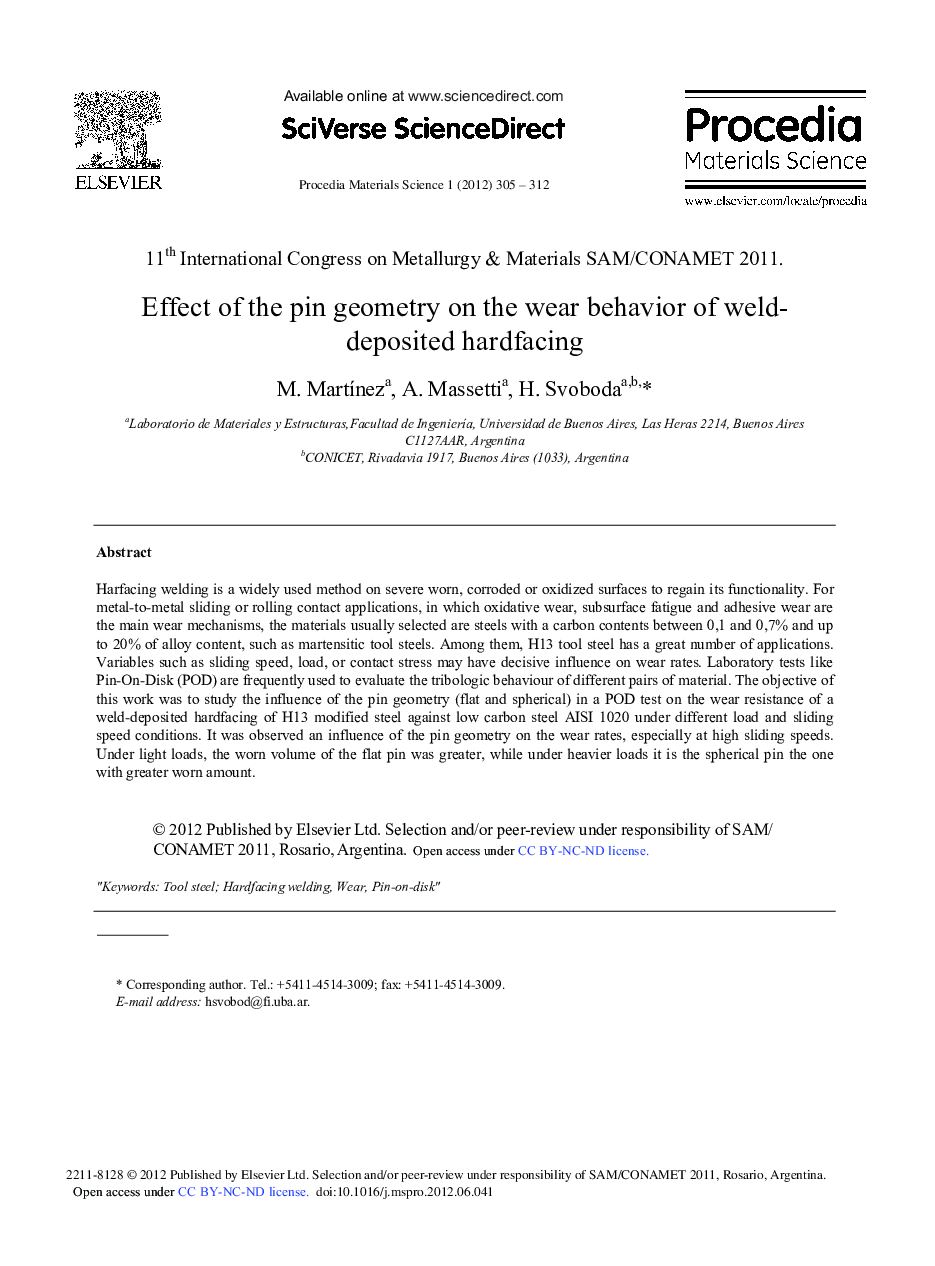

Effect of the Pin Geometry on the Wear Behavior of Weld-Deposited Hardfacing

Harfacing welding is a widely used method on severe worn, corroded or oxidized surfaces to regain its functionality. For metal-to-metal sliding or rolling contact applications, in which oxidative wear, subsurface fatigue and adhesive wear are the main wear mechanisms, the materials usually selected are steels with a carbon contents between 0,1 and 0,7% and up to 20% of alloy content, such as martensitic tool steels. Among them, H13 tool steel has a great number of applications. Variables such as sliding speed, load, or contact stress may have decisive influence on wear rates. Laboratory tests like Pin-On-Disk (POD) are frequently used to evaluate the tribologic behaviour of different pairs of material. The objective of this work was to study the influence of the pin geometry (flat and spherical) in a POD test on the wear resistance of a weld-deposited hardfacing of H13 modified steel against low carbon steel AISI 1020 under different load and sliding speed conditions. It was observed an influence of the pin geometry on the wear rates, especially at high sliding speeds. Under light loads, the worn volume of the flat pin was greater, while under heavier loads it is the spherical pin the one with greater worn amount.
