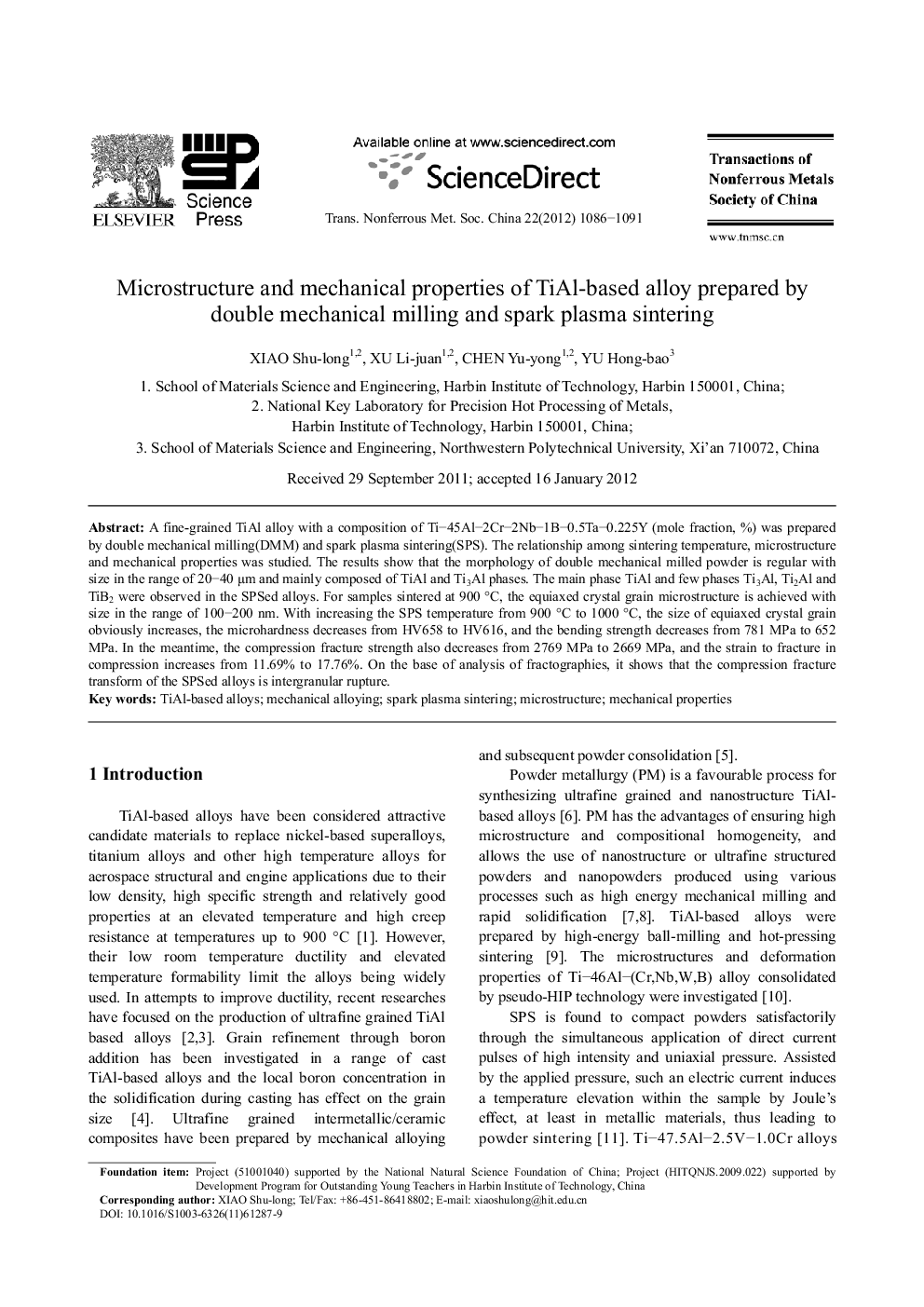

Microstructure and mechanical properties of TiAl-based alloy prepared by double mechanical milling and spark plasma sintering

A fine-grained TiAl alloy with a composition of Ti–45Al–2Cr–2Nb–1B–0.5Ta–0.225Y (mole fraction, %) was prepared by double mechanical milling(DMM) and spark plasma sintering(SPS). The relationship among sintering temperature, microstructure and mechanical properties was studied. The results show that the morphology of double mechanical milled powder is regular with size in the range of 20–40 μm and mainly composed of TiAl and Ti3Al phases. The main phase TiAl and few phases Ti3Al, Ti2Al and TiB2 were observed in the SPSed alloys. For samples sintered at 900 °C, the equiaxed crystal grain microstructure is achieved with size in the range of 100–200 nm. With increasing the SPS temperature from 900 °C to 1000 °C, the size of equiaxed crystal grain obviously increases, the microhardness decreases from HV658 to HV616, and the bending strength decreases from 781 MPa to 652 MPa. In the meantime, the compression fracture strength also decreases from 2769 MPa to 2669 MPa, and the strain to fracture in compression increases from 11.69% to 17.76%. On the base of analysis of fractographies, it shows that the compression fracture transform of the SPSed alloys is intergranular rupture.
