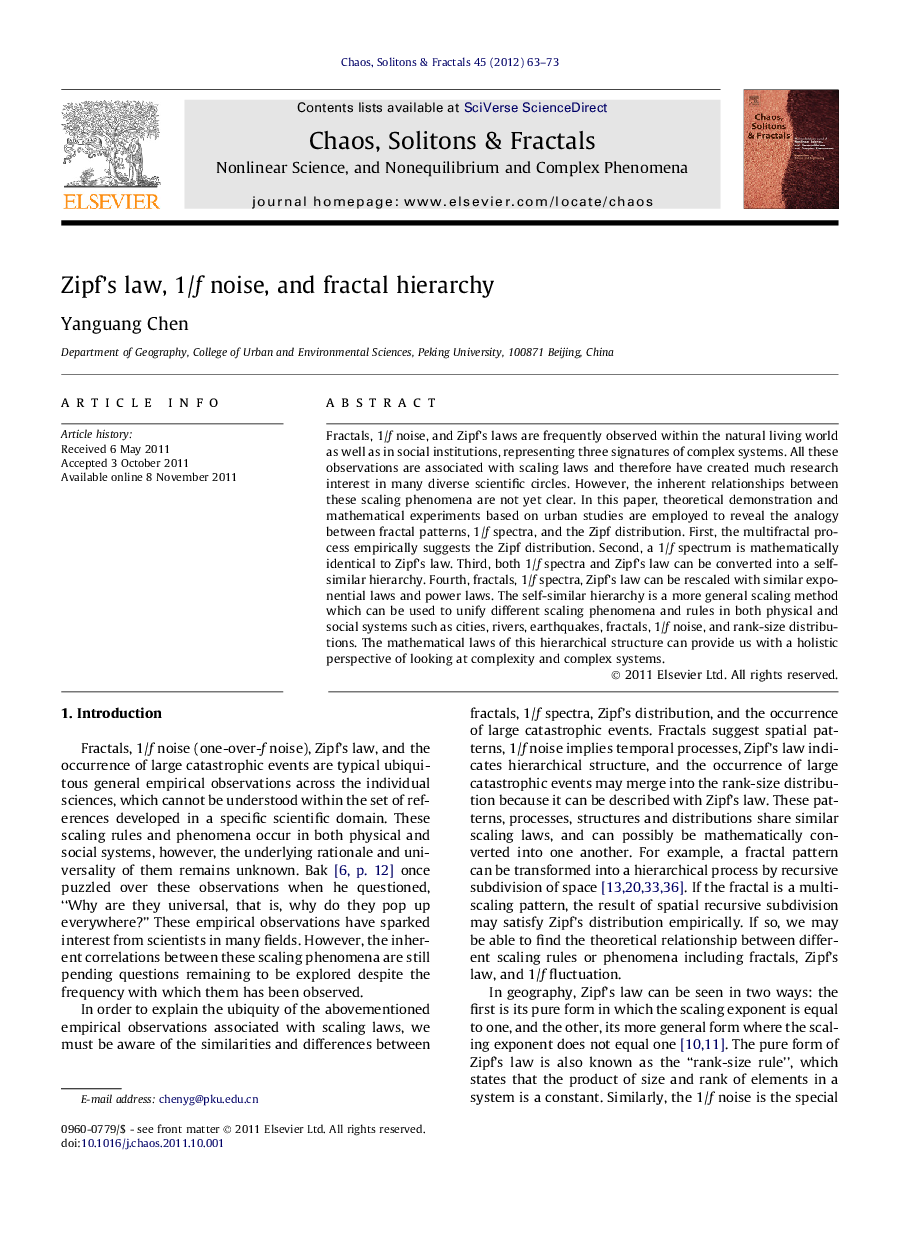

Zipf’s law, 1/f noise, and fractal hierarchy

Fractals, 1/f noise, and Zipf’s laws are frequently observed within the natural living world as well as in social institutions, representing three signatures of complex systems. All these observations are associated with scaling laws and therefore have created much research interest in many diverse scientific circles. However, the inherent relationships between these scaling phenomena are not yet clear. In this paper, theoretical demonstration and mathematical experiments based on urban studies are employed to reveal the analogy between fractal patterns, 1/f spectra, and the Zipf distribution. First, the multifractal process empirically suggests the Zipf distribution. Second, a 1/f spectrum is mathematically identical to Zipf’s law. Third, both 1/f spectra and Zipf’s law can be converted into a self-similar hierarchy. Fourth, fractals, 1/f spectra, Zipf’s law can be rescaled with similar exponential laws and power laws. The self-similar hierarchy is a more general scaling method which can be used to unify different scaling phenomena and rules in both physical and social systems such as cities, rivers, earthquakes, fractals, 1/f noise, and rank-size distributions. The mathematical laws of this hierarchical structure can provide us with a holistic perspective of looking at complexity and complex systems.

► I developed a general scaling method based on hierarchies of cites.
► Hierarchy is classified into three types based on monofractal and multifractals.
► Zipf’s law can be used to estimate the capacity dimension of a multifractal set.
► I derive the self-similar hierarchy from the rank-size distribution.
► The hierarchical scaling method can be applied to the 1/f spectra.
