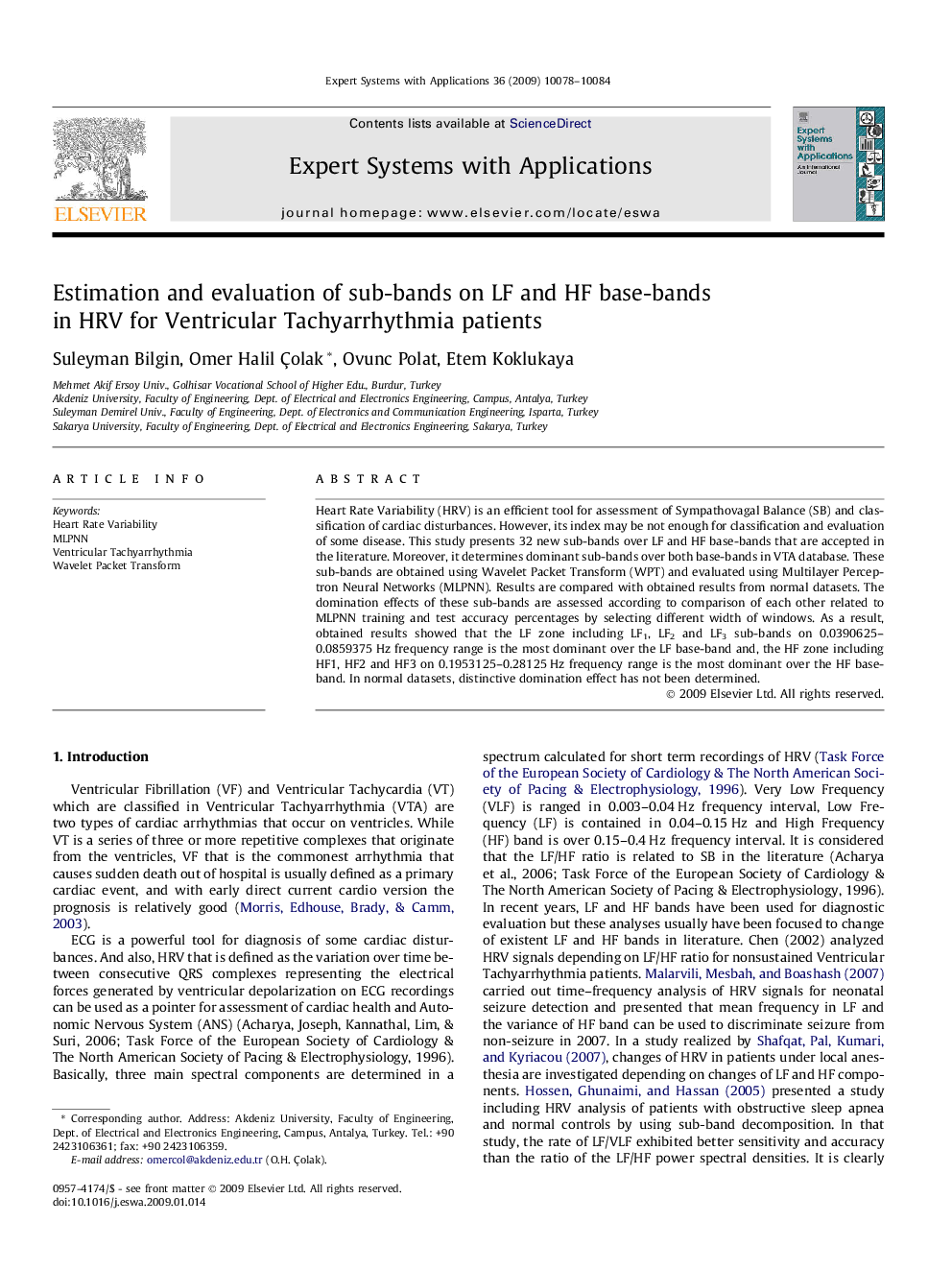

Estimation and evaluation of sub-bands on LF and HF base-bands in HRV for Ventricular Tachyarrhythmia patients

Heart Rate Variability (HRV) is an efficient tool for assessment of Sympathovagal Balance (SB) and classification of cardiac disturbances. However, its index may be not enough for classification and evaluation of some disease. This study presents 32 new sub-bands over LF and HF base-bands that are accepted in the literature. Moreover, it determines dominant sub-bands over both base-bands in VTA database. These sub-bands are obtained using Wavelet Packet Transform (WPT) and evaluated using Multilayer Perceptron Neural Networks (MLPNN). Results are compared with obtained results from normal datasets. The domination effects of these sub-bands are assessed according to comparison of each other related to MLPNN training and test accuracy percentages by selecting different width of windows. As a result, obtained results showed that the LF zone including LF1, LF2 and LF3 sub-bands on 0.0390625–0.0859375 Hz frequency range is the most dominant over the LF base-band and, the HF zone including HF1, HF2 and HF3 on 0.1953125–0.28125 Hz frequency range is the most dominant over the HF base-band. In normal datasets, distinctive domination effect has not been determined.
