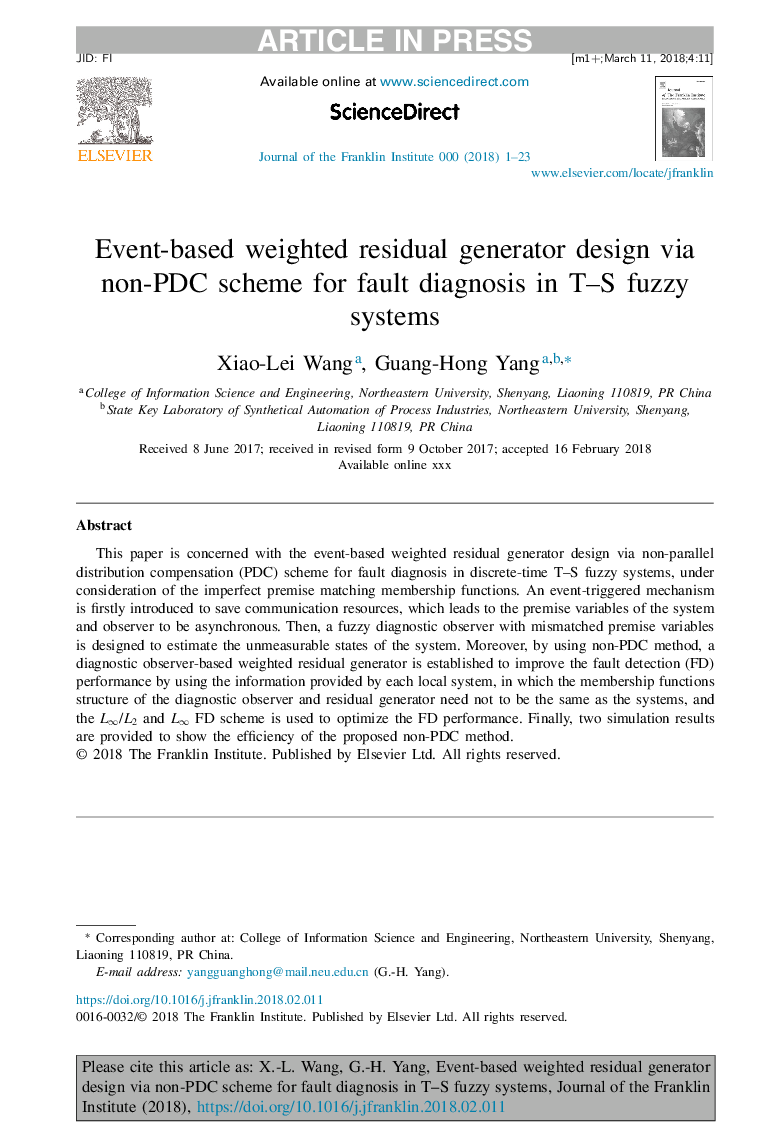

Event-based weighted residual generator design via non-PDC scheme for fault diagnosis in T-S fuzzy systems

This paper is concerned with the event-based weighted residual generator design via non-parallel distribution compensation (PDC) scheme for fault diagnosis in discrete-time T-S fuzzy systems, under consideration of the imperfect premise matching membership functions. An event-triggered mechanism is firstly introduced to save communication resources, which leads to the premise variables of the system and observer to be asynchronous. Then, a fuzzy diagnostic observer with mismatched premise variables is designed to estimate the unmeasurable states of the system. Moreover, by using non-PDC method, a diagnostic observer-based weighted residual generator is established to improve the fault detection (FD) performance by using the information provided by each local system, in which the membership functions structure of the diagnostic observer and residual generator need not to be the same as the systems, and the L∞/L2 and L∞ FD scheme is used to optimize the FD performance. Finally, two simulation results are provided to show the efficiency of the proposed non-PDC method.
