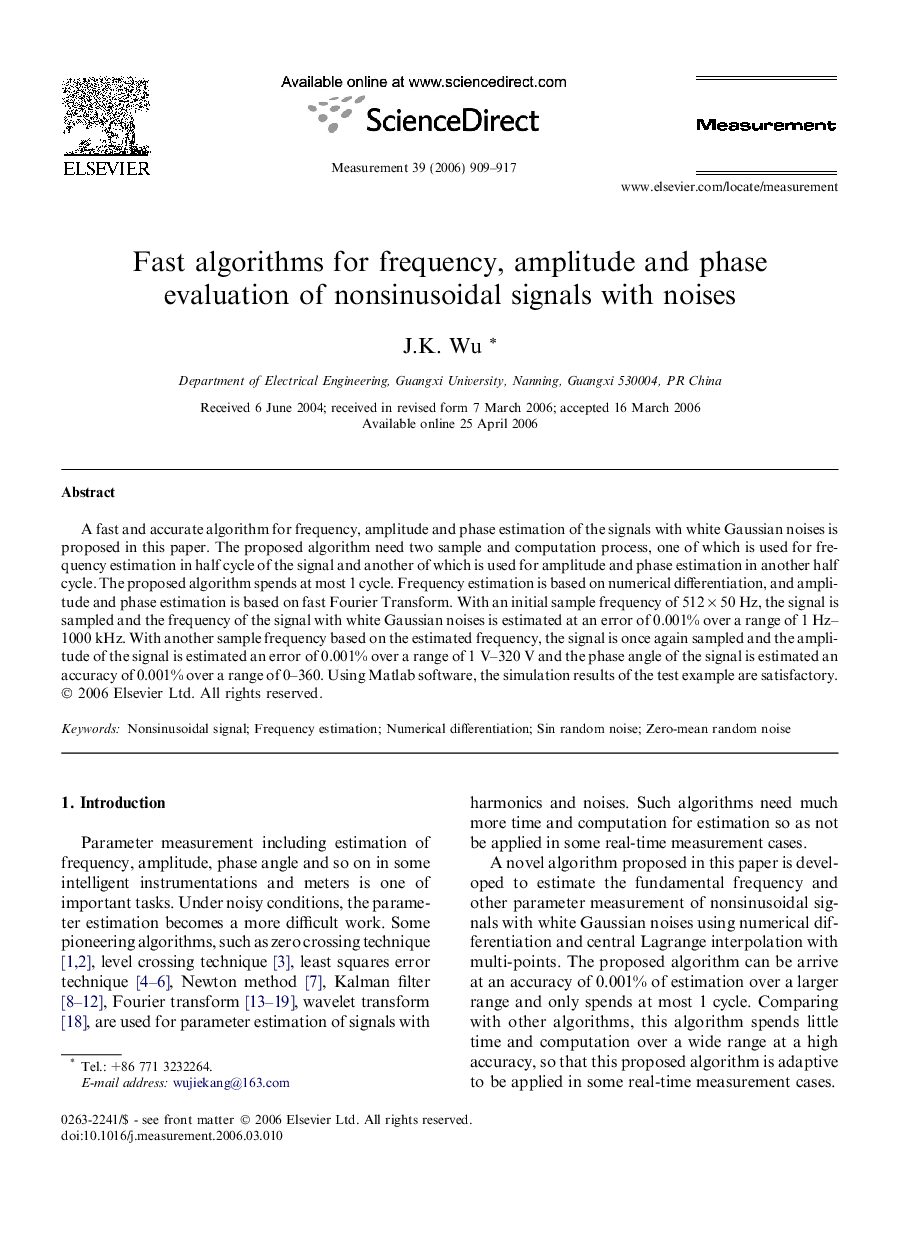

Fast algorithms for frequency, amplitude and phase evaluation of nonsinusoidal signals with noises

A fast and accurate algorithm for frequency, amplitude and phase estimation of the signals with white Gaussian noises is proposed in this paper. The proposed algorithm need two sample and computation process, one of which is used for frequency estimation in half cycle of the signal and another of which is used for amplitude and phase estimation in another half cycle. The proposed algorithm spends at most 1 cycle. Frequency estimation is based on numerical differentiation, and amplitude and phase estimation is based on fast Fourier Transform. With an initial sample frequency of 512 × 50 Hz, the signal is sampled and the frequency of the signal with white Gaussian noises is estimated at an error of 0.001% over a range of 1 Hz–1000 kHz. With another sample frequency based on the estimated frequency, the signal is once again sampled and the amplitude of the signal is estimated an error of 0.001% over a range of 1 V–320 V and the phase angle of the signal is estimated an accuracy of 0.001% over a range of 0–360. Using Matlab software, the simulation results of the test example are satisfactory.
