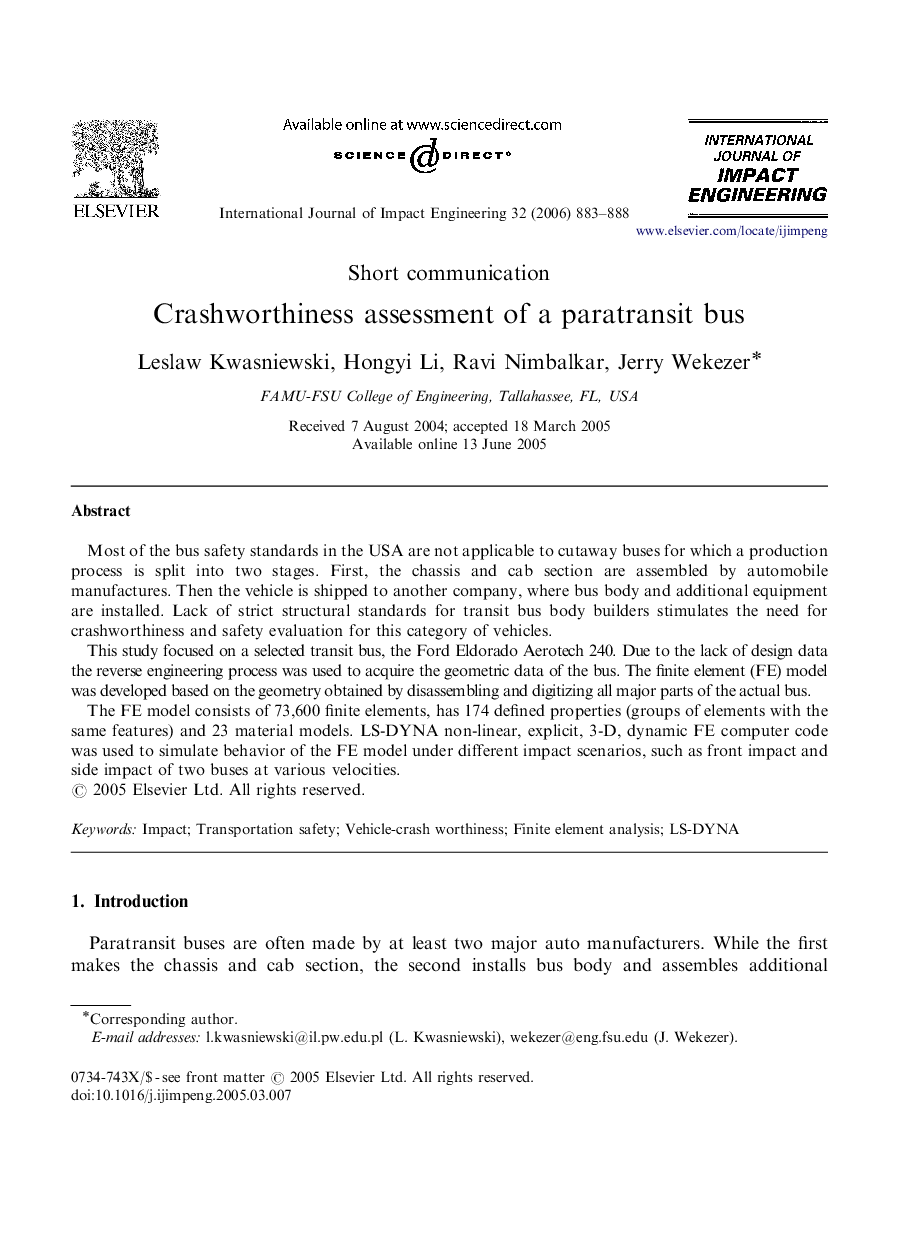

Crashworthiness assessment of a paratransit bus

Most of the bus safety standards in the USA are not applicable to cutaway buses for which a production process is split into two stages. First, the chassis and cab section are assembled by automobile manufactures. Then the vehicle is shipped to another company, where bus body and additional equipment are installed. Lack of strict structural standards for transit bus body builders stimulates the need for crashworthiness and safety evaluation for this category of vehicles.This study focused on a selected transit bus, the Ford Eldorado Aerotech 240. Due to the lack of design data the reverse engineering process was used to acquire the geometric data of the bus. The finite element (FE) model was developed based on the geometry obtained by disassembling and digitizing all major parts of the actual bus.The FE model consists of 73,600 finite elements, has 174 defined properties (groups of elements with the same features) and 23 material models. LS-DYNA non-linear, explicit, 3-D, dynamic FE computer code was used to simulate behavior of the FE model under different impact scenarios, such as front impact and side impact of two buses at various velocities.
