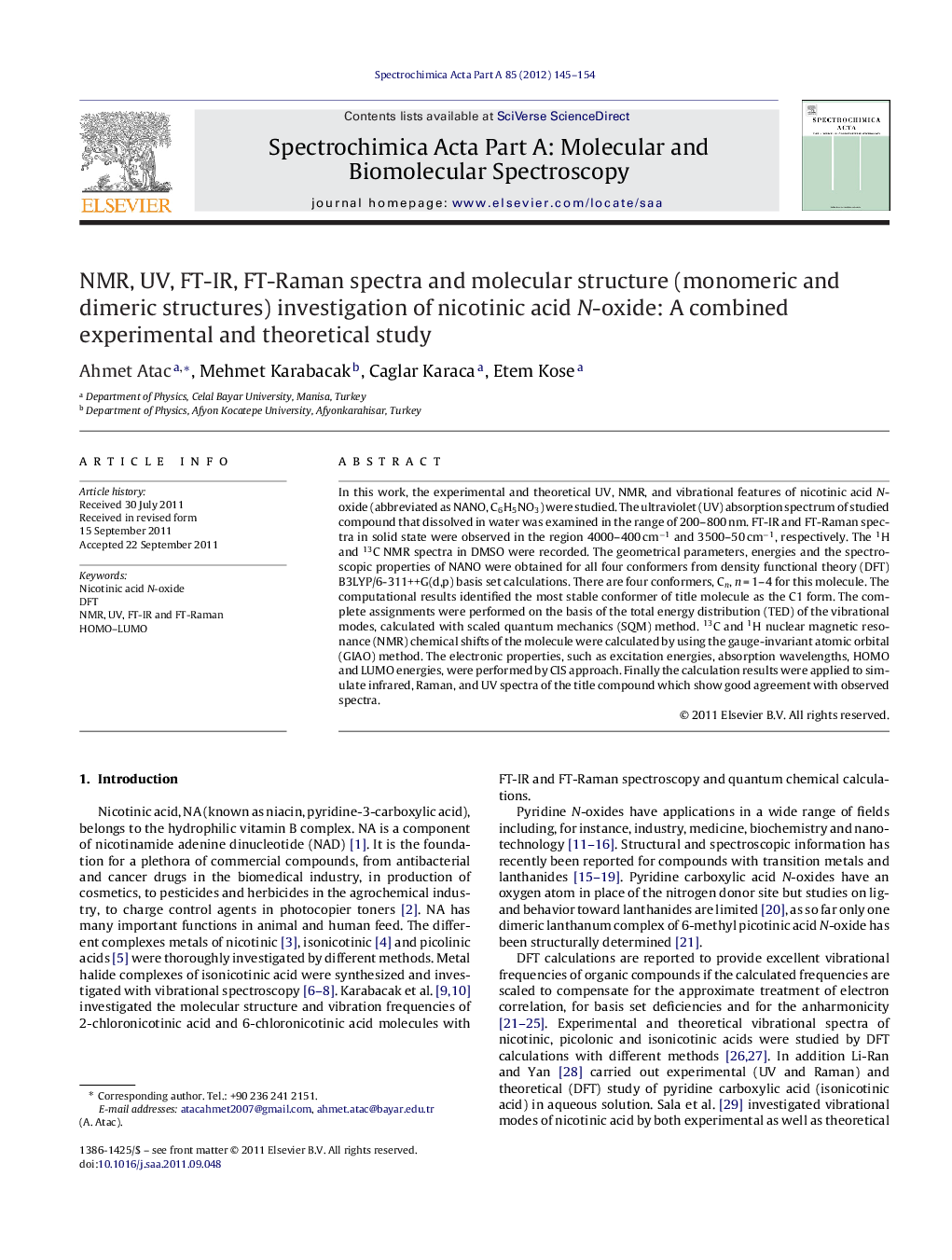

NMR, UV, FT-IR, FT-Raman spectra and molecular structure (monomeric and dimeric structures) investigation of nicotinic acid N-oxide: A combined experimental and theoretical study

In this work, the experimental and theoretical UV, NMR, and vibrational features of nicotinic acid N-oxide (abbreviated as NANO, C6H5NO3) were studied. The ultraviolet (UV) absorption spectrum of studied compound that dissolved in water was examined in the range of 200–800 nm. FT-IR and FT-Raman spectra in solid state were observed in the region 4000–400 cm−1 and 3500–50 cm−1, respectively. The 1H and 13C NMR spectra in DMSO were recorded. The geometrical parameters, energies and the spectroscopic properties of NANO were obtained for all four conformers from density functional theory (DFT) B3LYP/6-311++G(d,p) basis set calculations. There are four conformers, Cn, n = 1–4 for this molecule. The computational results identified the most stable conformer of title molecule as the C1 form. The complete assignments were performed on the basis of the total energy distribution (TED) of the vibrational modes, calculated with scaled quantum mechanics (SQM) method. 13C and 1H nuclear magnetic resonance (NMR) chemical shifts of the molecule were calculated by using the gauge-invariant atomic orbital (GIAO) method. The electronic properties, such as excitation energies, absorption wavelengths, HOMO and LUMO energies, were performed by CIS approach. Finally the calculation results were applied to simulate infrared, Raman, and UV spectra of the title compound which show good agreement with observed spectra.

Figure optionsDownload as PowerPoint slideHighlights
► Spectroscopic properties of nicotinic acid N-oxide were examined by NMR, UV, FT-IR, FT-Raman and DFT.
► All results were compared with experimental (FT-IR, FT-Raman, UV, 1H, 13C NMR) spectra.
► The electronic properties (HOMO and LUMO energies, absorption wavelength and excitation energies) were performed DFT.
