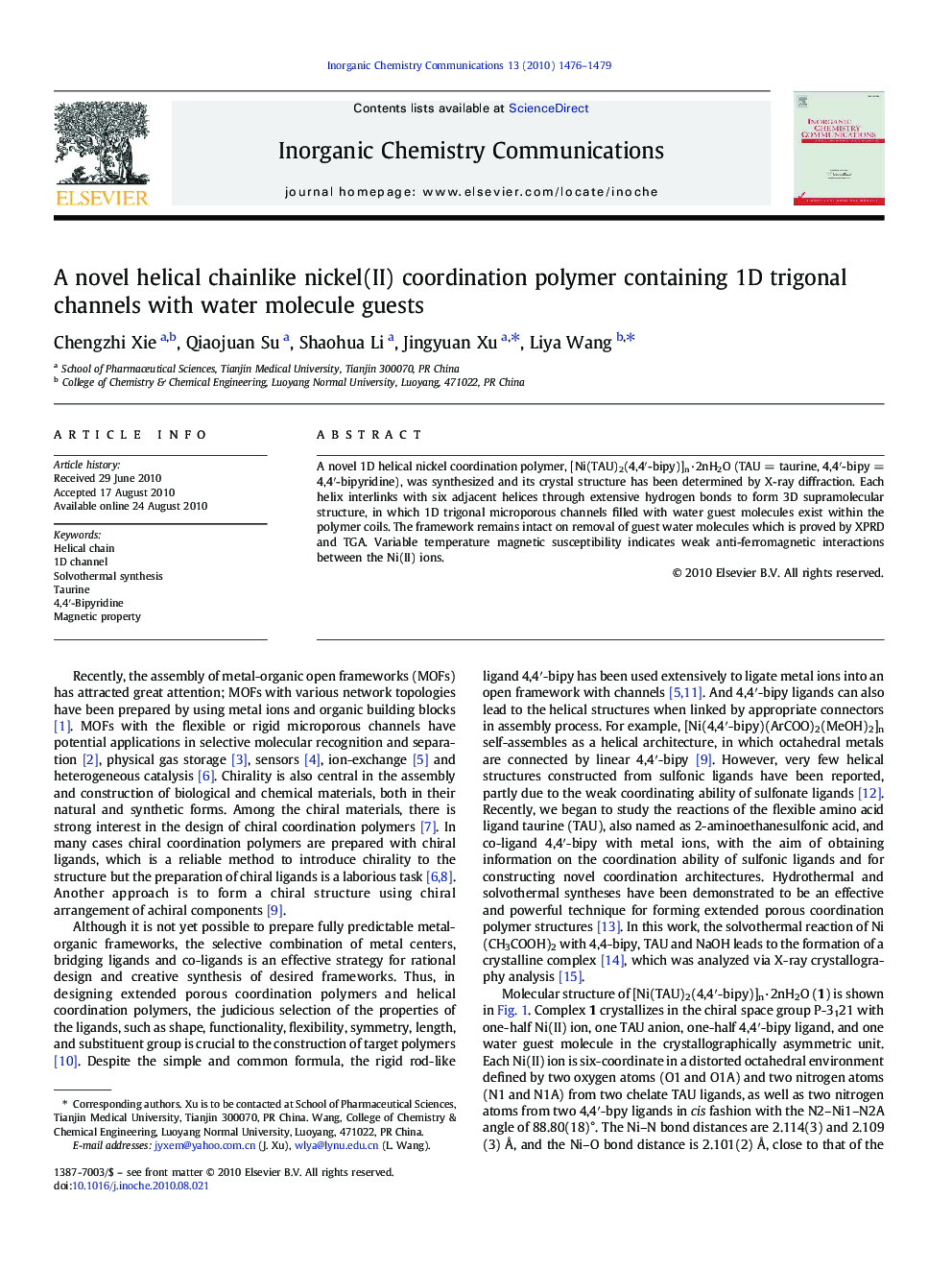

A novel helical chainlike nickel(II) coordination polymer containing 1D trigonal channels with water molecule guests

A novel 1D helical nickel coordination polymer, [Ni(TAU)2(4,4′-bipy)]n·2nH2O (TAU = taurine, 4,4′-bipy = 4,4′-bipyridine), was synthesized and its crystal structure has been determined by X-ray diffraction. Each helix interlinks with six adjacent helices through extensive hydrogen bonds to form 3D supramolecular structure, in which 1D trigonal microporous channels filled with water guest molecules exist within the polymer coils. The framework remains intact on removal of guest water molecules which is proved by XPRD and TGA. Variable temperature magnetic susceptibility indicates weak anti-ferromagnetic interactions between the Ni(II) ions.

Graphical AbstractA novel 1D helical nickel coordination polymer, [Ni(TAU)2(4,4′-bipy)]n·2nH2O was synthesized under solvothermal reaction, in which 1D trigonal microporous channels filled with water guest molecules exist within the polymer coils. The framework remains intact on removal of guest water molecules which proved by XPRD and TGA.Figure optionsDownload as PowerPoint slide
