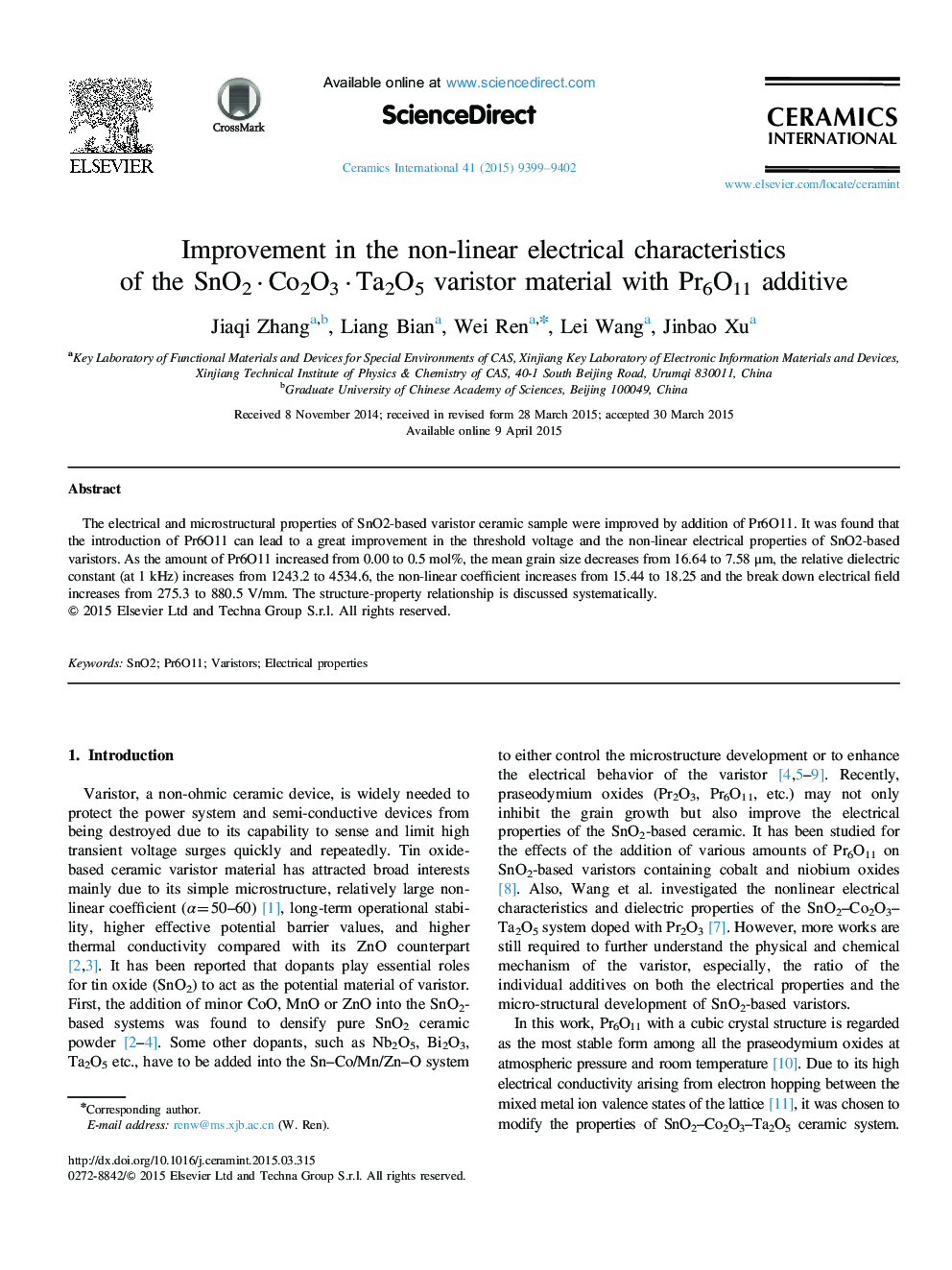

Improvement in the non-linear electrical characteristics of the SnO2·Co2O3·Ta2O5 varistor material with Pr6O11 additive

The electrical and microstructural properties of SnO2-based varistor ceramic sample were improved by addition of Pr6O11. It was found that the introduction of Pr6O11 can lead to a great improvement in the threshold voltage and the non-linear electrical properties of SnO2-based varistors. As the amount of Pr6O11 increased from 0.00 to 0.5 mol%, the mean grain size decreases from 16.64 to 7.58 μm, the relative dielectric constant (at 1 kHz) increases from 1243.2 to 4534.6, the non-linear coefficient increases from 15.44 to 18.25 and the break down electrical field increases from 275.3 to 880.5 V/mm. The structure-property relationship is discussed systematically.
