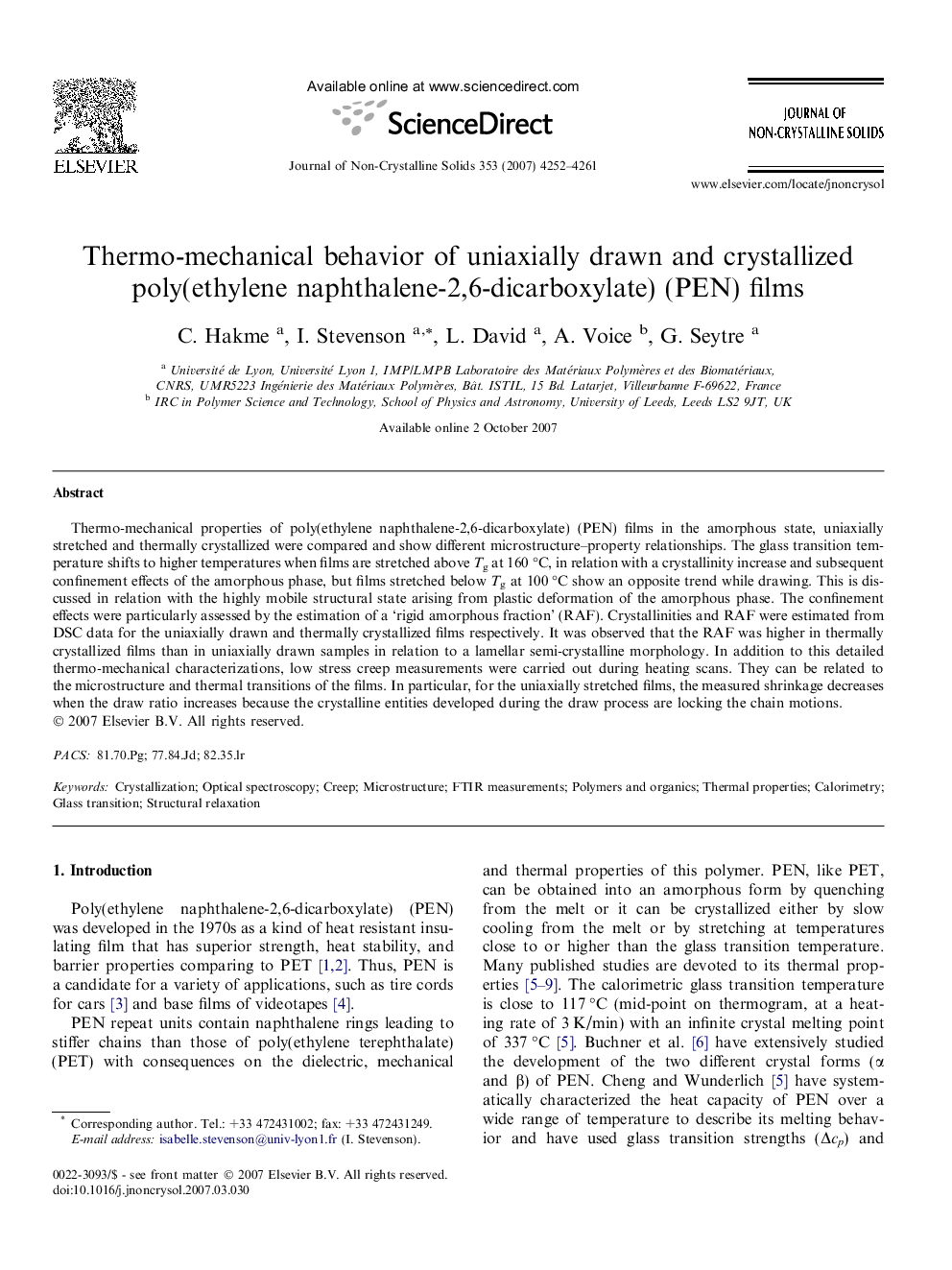

Thermo-mechanical behavior of uniaxially drawn and crystallized poly(ethylene naphthalene-2,6-dicarboxylate) (PEN) films

Thermo-mechanical properties of poly(ethylene naphthalene-2,6-dicarboxylate) (PEN) films in the amorphous state, uniaxially stretched and thermally crystallized were compared and show different microstructure–property relationships. The glass transition temperature shifts to higher temperatures when films are stretched above Tg at 160 °C, in relation with a crystallinity increase and subsequent confinement effects of the amorphous phase, but films stretched below Tg at 100 °C show an opposite trend while drawing. This is discussed in relation with the highly mobile structural state arising from plastic deformation of the amorphous phase. The confinement effects were particularly assessed by the estimation of a ‘rigid amorphous fraction’ (RAF). Crystallinities and RAF were estimated from DSC data for the uniaxially drawn and thermally crystallized films respectively. It was observed that the RAF was higher in thermally crystallized films than in uniaxially drawn samples in relation to a lamellar semi-crystalline morphology. In addition to this detailed thermo-mechanical characterizations, low stress creep measurements were carried out during heating scans. They can be related to the microstructure and thermal transitions of the films. In particular, for the uniaxially stretched films, the measured shrinkage decreases when the draw ratio increases because the crystalline entities developed during the draw process are locking the chain motions.
