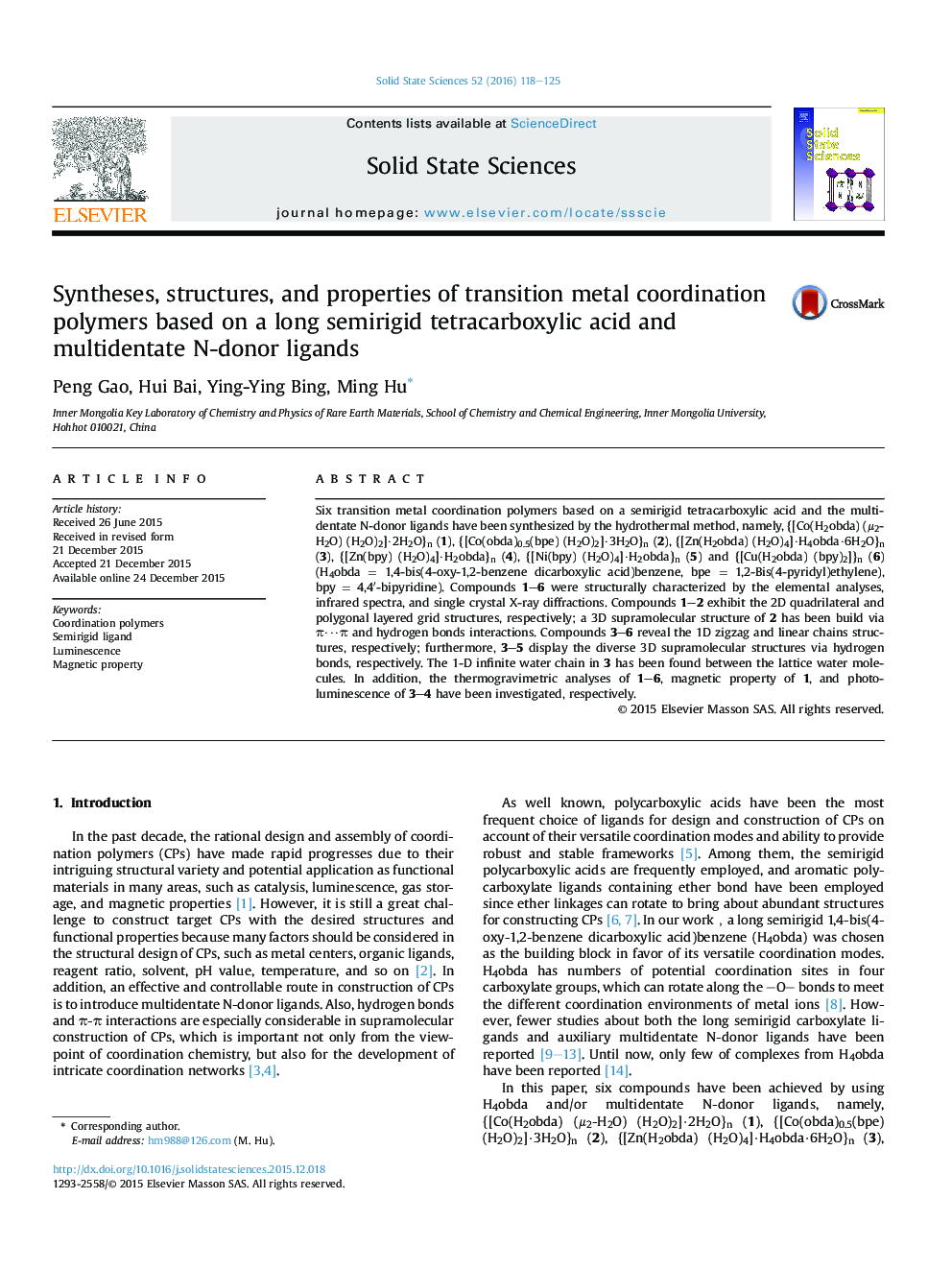

Syntheses, structures, and properties of transition metal coordination polymers based on a long semirigid tetracarboxylic acid and multidentate N-donor ligands

• Six coordination polymers display the diverse structures.
• A 1-D infinite water chain exists in compound 3.
• The magnetism and photoluminescence of some complexes were investigated.

Six transition metal coordination polymers based on a semirigid tetracarboxylic acid and the multidentate N-donor ligands have been synthesized by the hydrothermal method, namely, {[Co(H2obda) (μ2-H2O) (H2O)2]·2H2O}n (1), {[Co(obda)0.5(bpe) (H2O)2]·3H2O}n (2), {[Zn(H2obda) (H2O)4]·H4obda·6H2O}n (3), {[Zn(bpy) (H2O)4]·H2obda}n (4), {[Ni(bpy) (H2O)4]·H2obda}n (5) and {[Cu(H2obda) (bpy)2]}n (6) (H4obda = 1,4-bis(4-oxy-1,2-benzene dicarboxylic acid)benzene, bpe = 1,2-Bis(4-pyridyl)ethylene), bpy = 4,4′-bipyridine). Compounds 1–6 were structurally characterized by the elemental analyses, infrared spectra, and single crystal X-ray diffractions. Compounds 1–2 exhibit the 2D quadrilateral and polygonal layered grid structures, respectively; a 3D supramolecular structure of 2 has been build via π···π and hydrogen bonds interactions. Compounds 3–6 reveal the 1D zigzag and linear chains structures, respectively; furthermore, 3–5 display the diverse 3D supramolecular structures via hydrogen bonds, respectively. The 1-D infinite water chain in 3 has been found between the lattice water molecules. In addition, the thermogravimetric analyses of 1–6, magnetic property of 1, and photoluminescence of 3–4 have been investigated, respectively.
