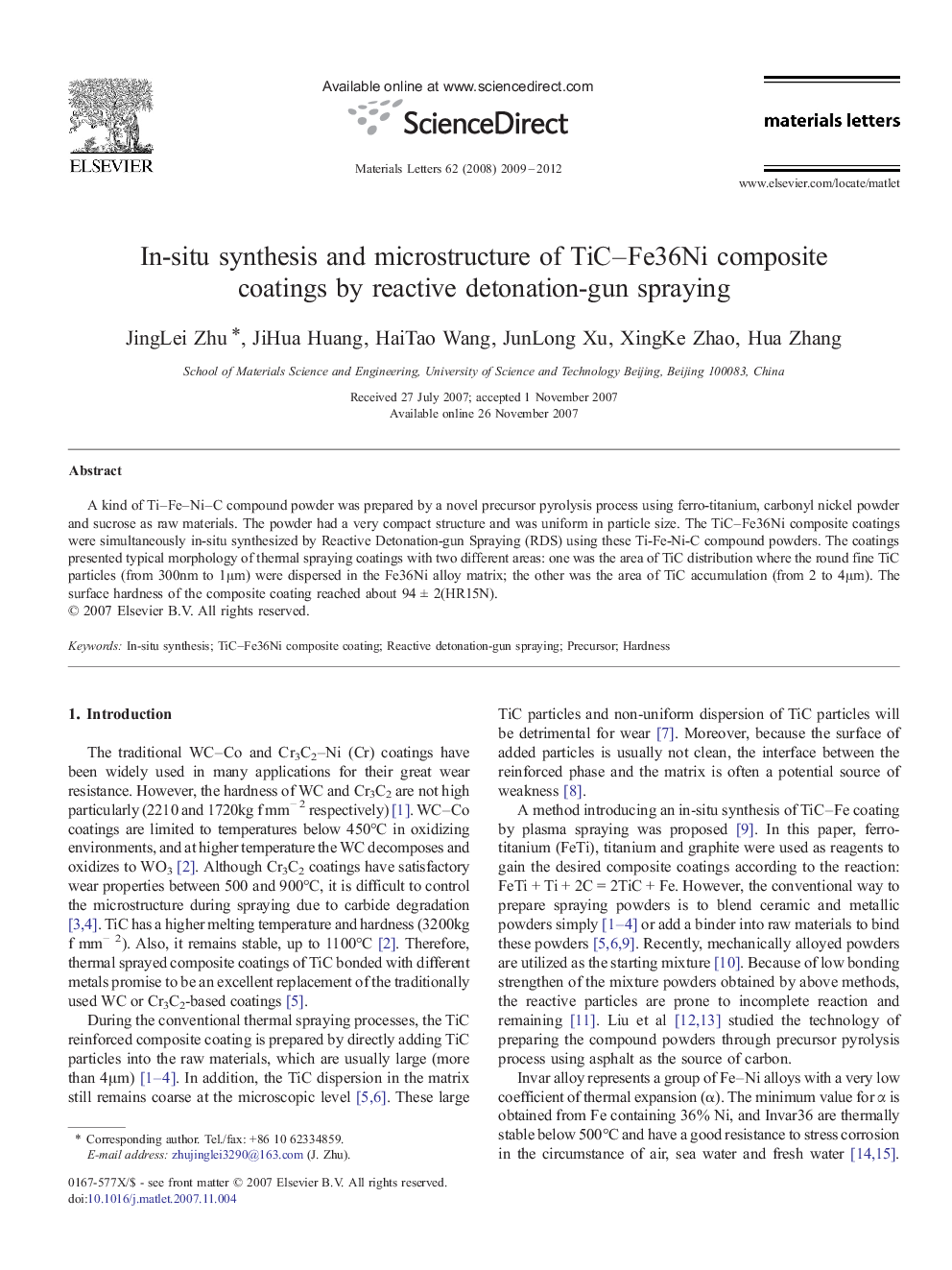

In-situ synthesis and microstructure of TiC-Fe36Ni composite coatings by reactive detonation-gun spraying

A kind of Ti-Fe-Ni-C compound powder was prepared by a novel precursor pyrolysis process using ferro-titanium, carbonyl nickel powder and sucrose as raw materials. The powder had a very compact structure and was uniform in particle size. The TiC-Fe36Ni composite coatings were simultaneously in-situ synthesized by Reactive Detonation-gun Spraying (RDS) using these Ti-Fe-Ni-C compound powders. The coatings presented typical morphology of thermal spraying coatings with two different areas: one was the area of TiC distribution where the round fine TiC particles (from 300nm to 1μm) were dispersed in the Fe36Ni alloy matrix; the other was the area of TiC accumulation (from 2 to 4μm). The surface hardness of the composite coating reached about 94 ± 2(HR15N).
