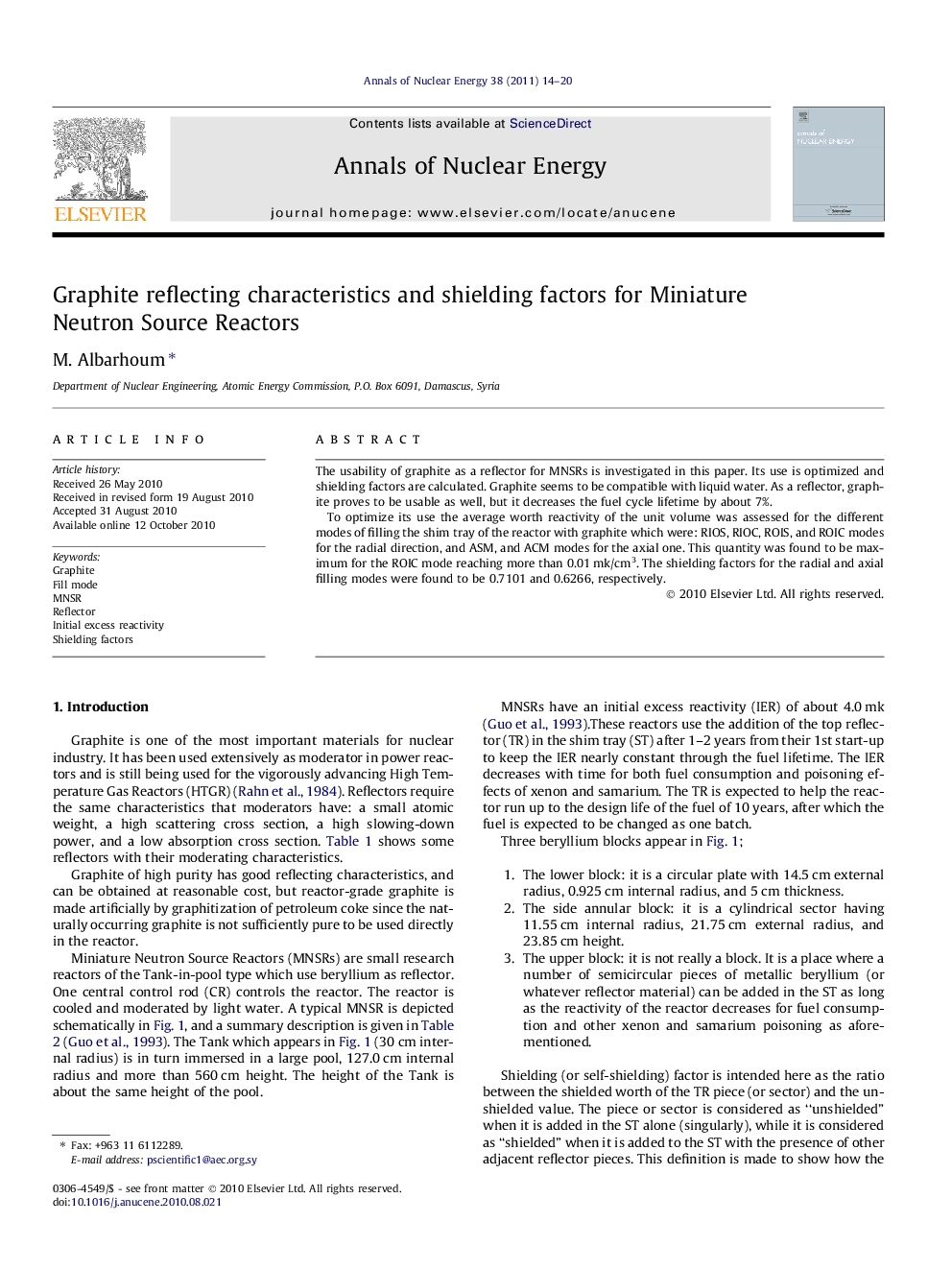

Graphite reflecting characteristics and shielding factors for Miniature Neutron Source Reactors

The usability of graphite as a reflector for MNSRs is investigated in this paper. Its use is optimized and shielding factors are calculated. Graphite seems to be compatible with liquid water. As a reflector, graphite proves to be usable as well, but it decreases the fuel cycle lifetime by about 7%.To optimize its use the average worth reactivity of the unit volume was assessed for the different modes of filling the shim tray of the reactor with graphite which were: RIOS, RIOC, ROIS, and ROIC modes for the radial direction, and ASM, and ACM modes for the axial one. This quantity was found to be maximum for the ROIC mode reaching more than 0.01 mk/cm3. The shielding factors for the radial and axial filling modes were found to be 0.7101 and 0.6266, respectively.
