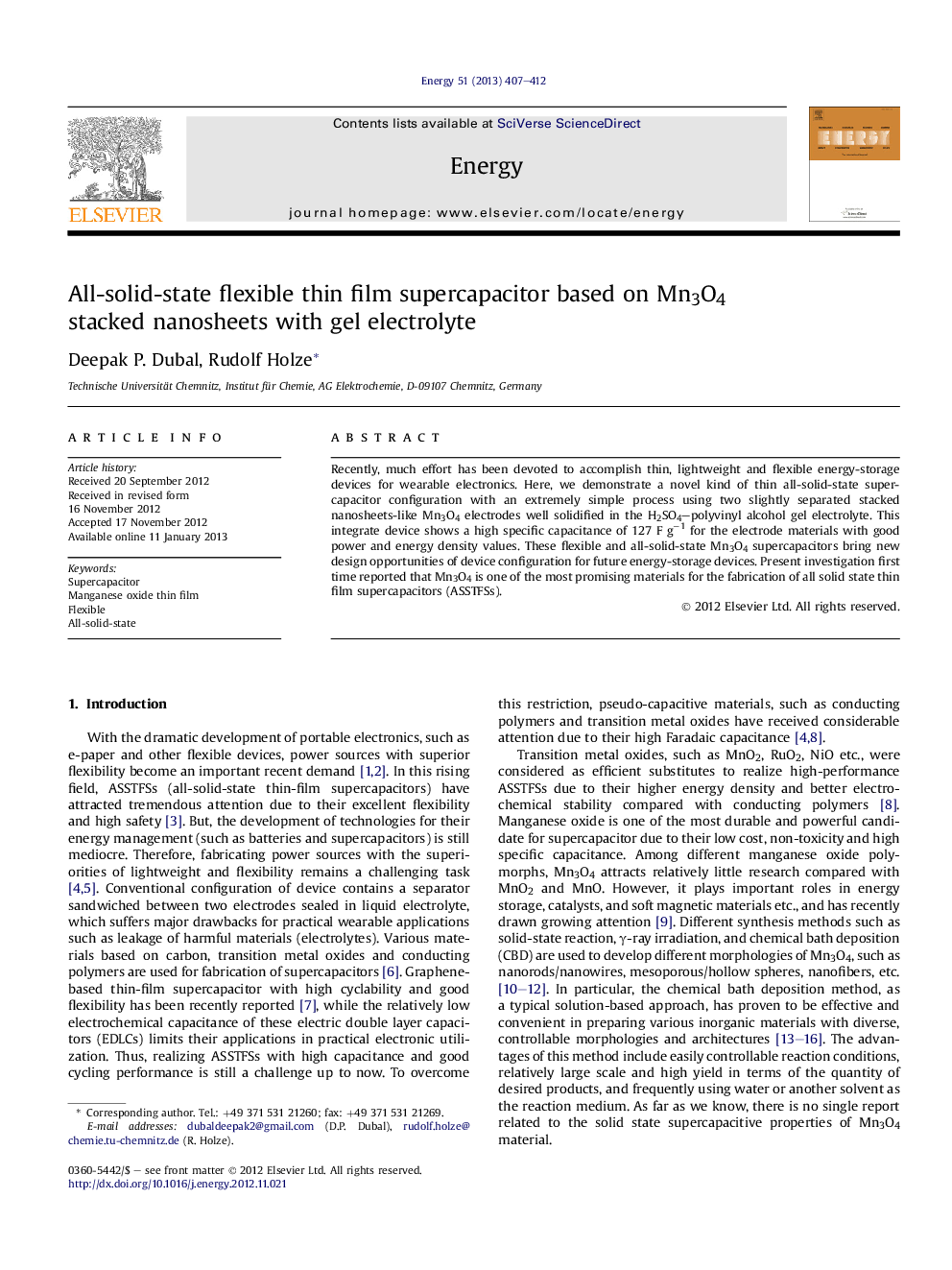

All-solid-state flexible thin film supercapacitor based on Mn3O4 stacked nanosheets with gel electrolyte

Recently, much effort has been devoted to accomplish thin, lightweight and flexible energy-storage devices for wearable electronics. Here, we demonstrate a novel kind of thin all-solid-state supercapacitor configuration with an extremely simple process using two slightly separated stacked nanosheets-like Mn3O4 electrodes well solidified in the H2SO4–polyvinyl alcohol gel electrolyte. This integrate device shows a high specific capacitance of 127 F g−1 for the electrode materials with good power and energy density values. These flexible and all-solid-state Mn3O4 supercapacitors bring new design opportunities of device configuration for future energy-storage devices. Present investigation first time reported that Mn3O4 is one of the most promising materials for the fabrication of all solid state thin film supercapacitors (ASSTFSs).

► Mn3O4-based all-solid state thin film supercapacitor.
► Mesoporous stacked nanosheet-like nanostructure.
► Mn3O4-based device provides high specific capacitance and less equivalent series resistance.
► Mn3O4-based device shows high power and energy density.
