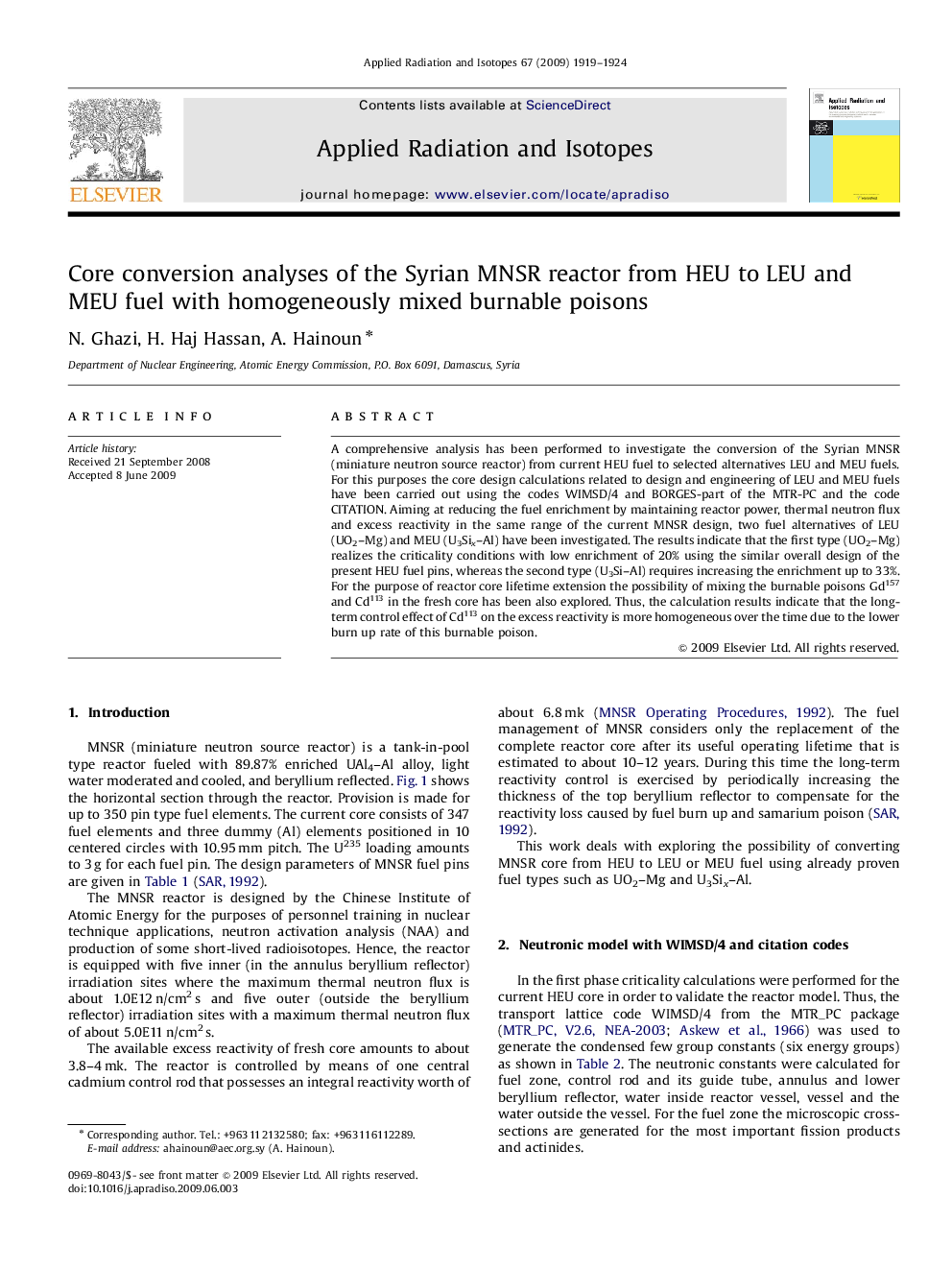

Core conversion analyses of the Syrian MNSR reactor from HEU to LEU and MEU fuel with homogeneously mixed burnable poisons

A comprehensive analysis has been performed to investigate the conversion of the Syrian MNSR (miniature neutron source reactor) from current HEU fuel to selected alternatives LEU and MEU fuels. For this purposes the core design calculations related to design and engineering of LEU and MEU fuels have been carried out using the codes WIMSD/4 and BORGES-part of the MTR-PC and the code CITATION. Aiming at reducing the fuel enrichment by maintaining reactor power, thermal neutron flux and excess reactivity in the same range of the current MNSR design, two fuel alternatives of LEU (UO2–Mg) and MEU (U3Six–Al) have been investigated. The results indicate that the first type (UO2–Mg) realizes the criticality conditions with low enrichment of 20% using the similar overall design of the present HEU fuel pins, whereas the second type (U3Si–Al) requires increasing the enrichment up to 33%. For the purpose of reactor core lifetime extension the possibility of mixing the burnable poisons Gd157 and Cd113 in the fresh core has been also explored. Thus, the calculation results indicate that the long-term control effect of Cd113 on the excess reactivity is more homogeneous over the time due to the lower burn up rate of this burnable poison.
