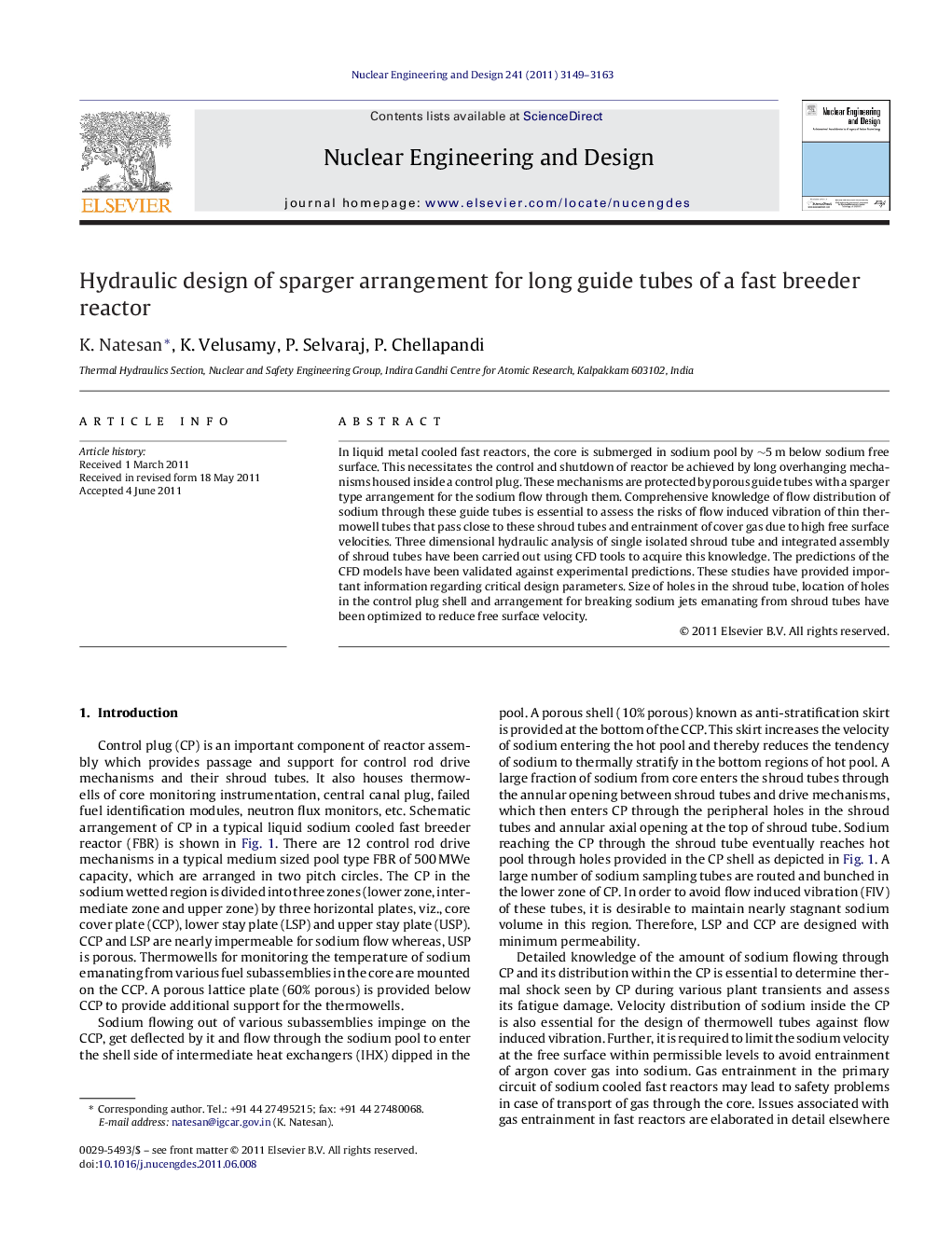

Hydraulic design of sparger arrangement for long guide tubes of a fast breeder reactor

In liquid metal cooled fast reactors, the core is submerged in sodium pool by ∼5 m below sodium free surface. This necessitates the control and shutdown of reactor be achieved by long overhanging mechanisms housed inside a control plug. These mechanisms are protected by porous guide tubes with a sparger type arrangement for the sodium flow through them. Comprehensive knowledge of flow distribution of sodium through these guide tubes is essential to assess the risks of flow induced vibration of thin thermowell tubes that pass close to these shroud tubes and entrainment of cover gas due to high free surface velocities. Three dimensional hydraulic analysis of single isolated shroud tube and integrated assembly of shroud tubes have been carried out using CFD tools to acquire this knowledge. The predictions of the CFD models have been validated against experimental predictions. These studies have provided important information regarding critical design parameters. Size of holes in the shroud tube, location of holes in the control plug shell and arrangement for breaking sodium jets emanating from shroud tubes have been optimized to reduce free surface velocity.

► Hydraulic design of control plug of a fast breeder reactor addressing flow induced vibration.
► Special devices to mitigate free surface velocity to reduce the risk of gas entrainment.
► Efficacy of jet breaker plates in diffusing turbulent co-axial jets.
