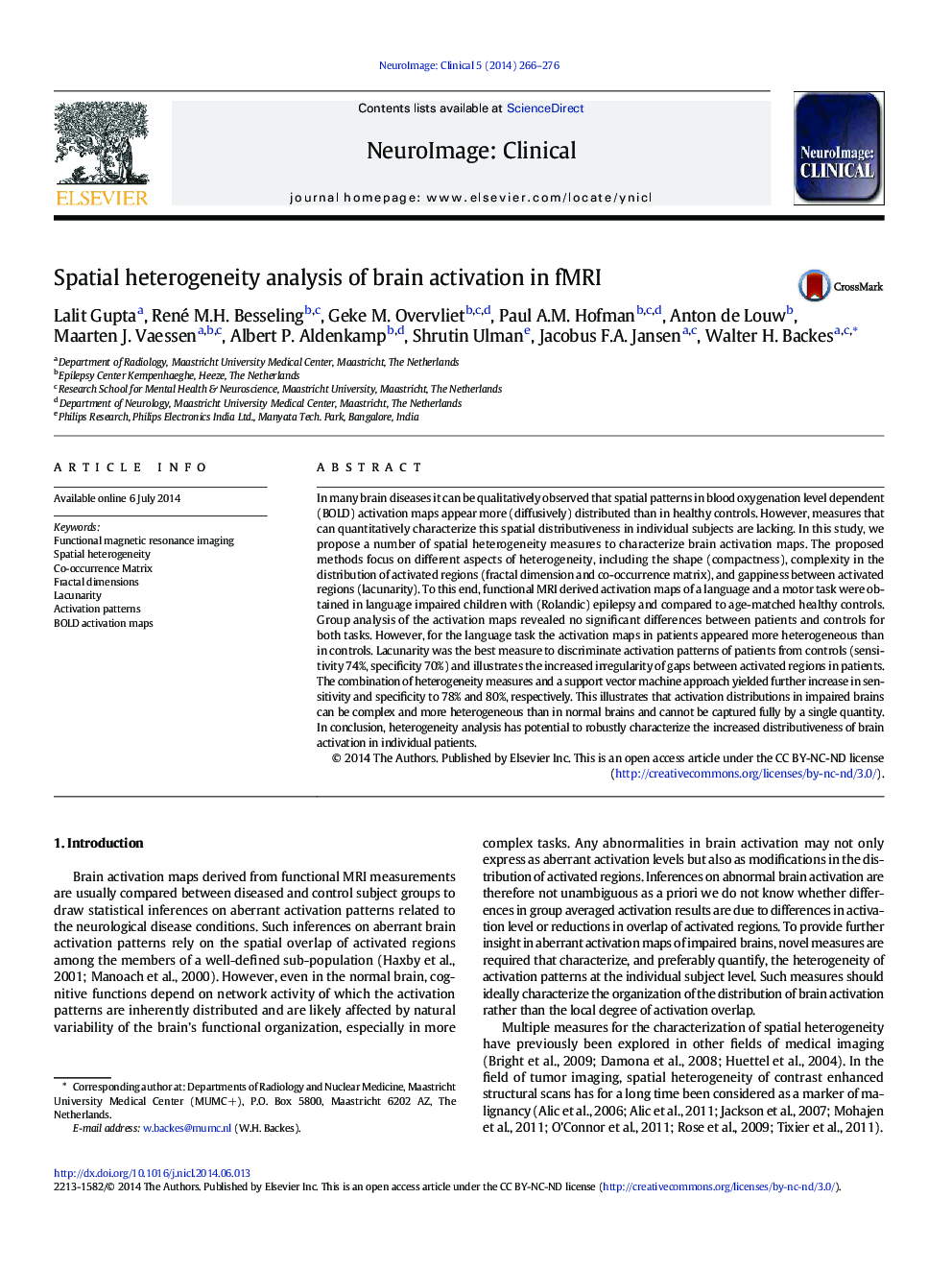

Spatial heterogeneity analysis of brain activation in fMRI

• A number of spatial heterogeneity measures of activation maps were explored in children with Rolandic epilepsy and language impairment
• Proposed measures capture the complexity, shape and distribution of brain activation patterns
• For a language task all proposed measures revealed that patients exhibit more heterogeneous activation patterns than controls, whereas for a motor task no differences appeared
• Spatial heterogeneity of activation patterns is a complex feature that cannot be captured by one single measure, but shape and lacunarity represented the best descriptive measures

In many brain diseases it can be qualitatively observed that spatial patterns in blood oxygenation level dependent (BOLD) activation maps appear more (diffusively) distributed than in healthy controls. However, measures that can quantitatively characterize this spatial distributiveness in individual subjects are lacking. In this study, we propose a number of spatial heterogeneity measures to characterize brain activation maps. The proposed methods focus on different aspects of heterogeneity, including the shape (compactness), complexity in the distribution of activated regions (fractal dimension and co-occurrence matrix), and gappiness between activated regions (lacunarity). To this end, functional MRI derived activation maps of a language and a motor task were obtained in language impaired children with (Rolandic) epilepsy and compared to age-matched healthy controls. Group analysis of the activation maps revealed no significant differences between patients and controls for both tasks. However, for the language task the activation maps in patients appeared more heterogeneous than in controls. Lacunarity was the best measure to discriminate activation patterns of patients from controls (sensitivity 74%, specificity 70%) and illustrates the increased irregularity of gaps between activated regions in patients. The combination of heterogeneity measures and a support vector machine approach yielded further increase in sensitivity and specificity to 78% and 80%, respectively. This illustrates that activation distributions in impaired brains can be complex and more heterogeneous than in normal brains and cannot be captured fully by a single quantity. In conclusion, heterogeneity analysis has potential to robustly characterize the increased distributiveness of brain activation in individual patients.
