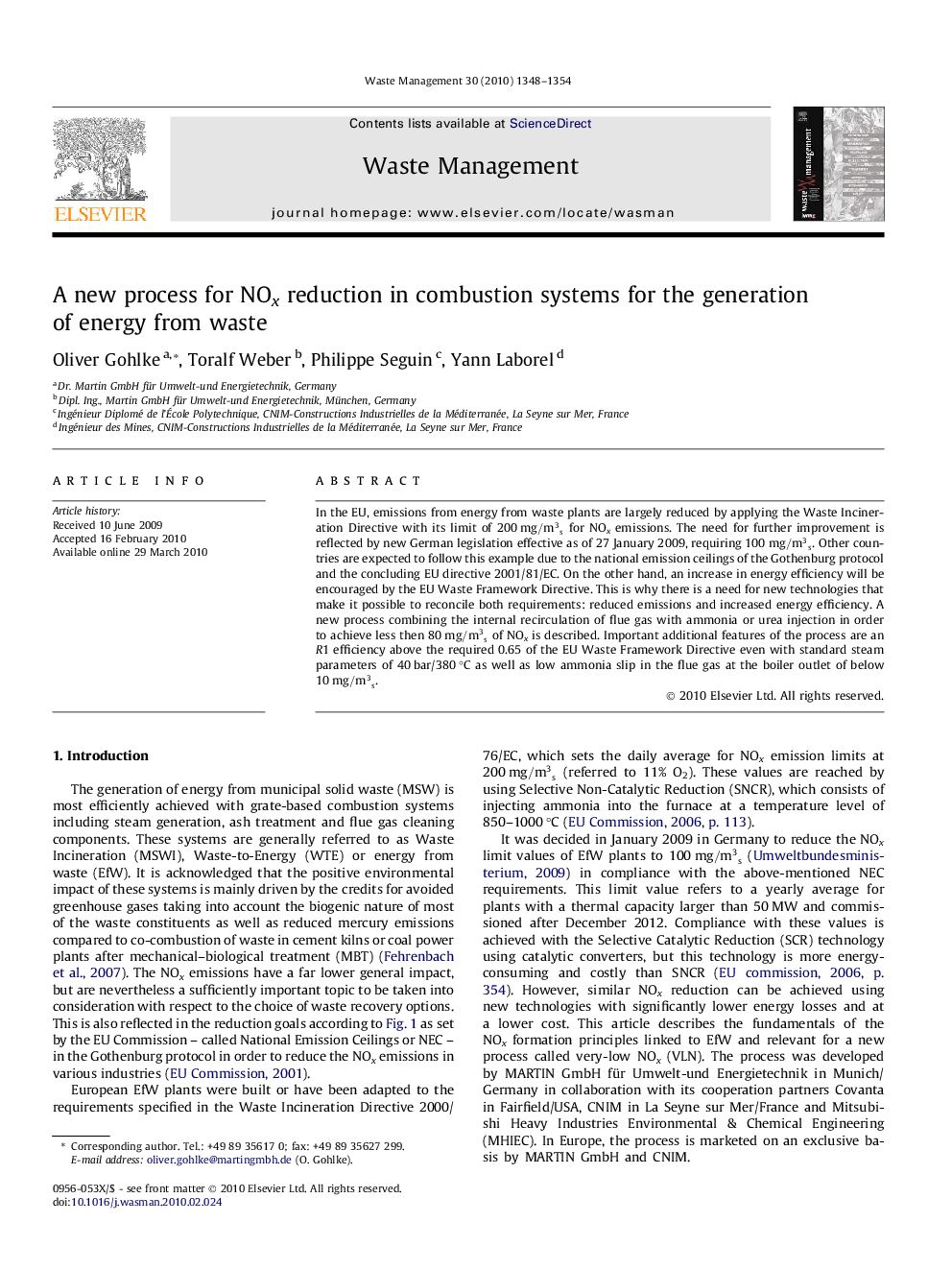

A new process for NOx reduction in combustion systems for the generation of energy from waste

In the EU, emissions from energy from waste plants are largely reduced by applying the Waste Incineration Directive with its limit of 200mg/m3s for NOx   emissions. The need for further improvement is reflected by new German legislation effective as of 27 January 2009, requiring 100mg/m3s. Other countries are expected to follow this example due to the national emission ceilings of the Gothenburg protocol and the concluding EU directive 2001/81/EC. On the other hand, an increase in energy efficiency will be encouraged by the EU Waste Framework Directive. This is why there is a need for new technologies that make it possible to reconcile both requirements: reduced emissions and increased energy efficiency. A new process combining the internal recirculation of flue gas with ammonia or urea injection in order to achieve less then 80mg/m3s of NOx is described. Important additional features of the process are an R1 efficiency above the required 0.65 of the EU Waste Framework Directive even with standard steam parameters of 40 bar/380 °C as well as low ammonia slip in the flue gas at the boiler outlet of below 10mg/m3s.
