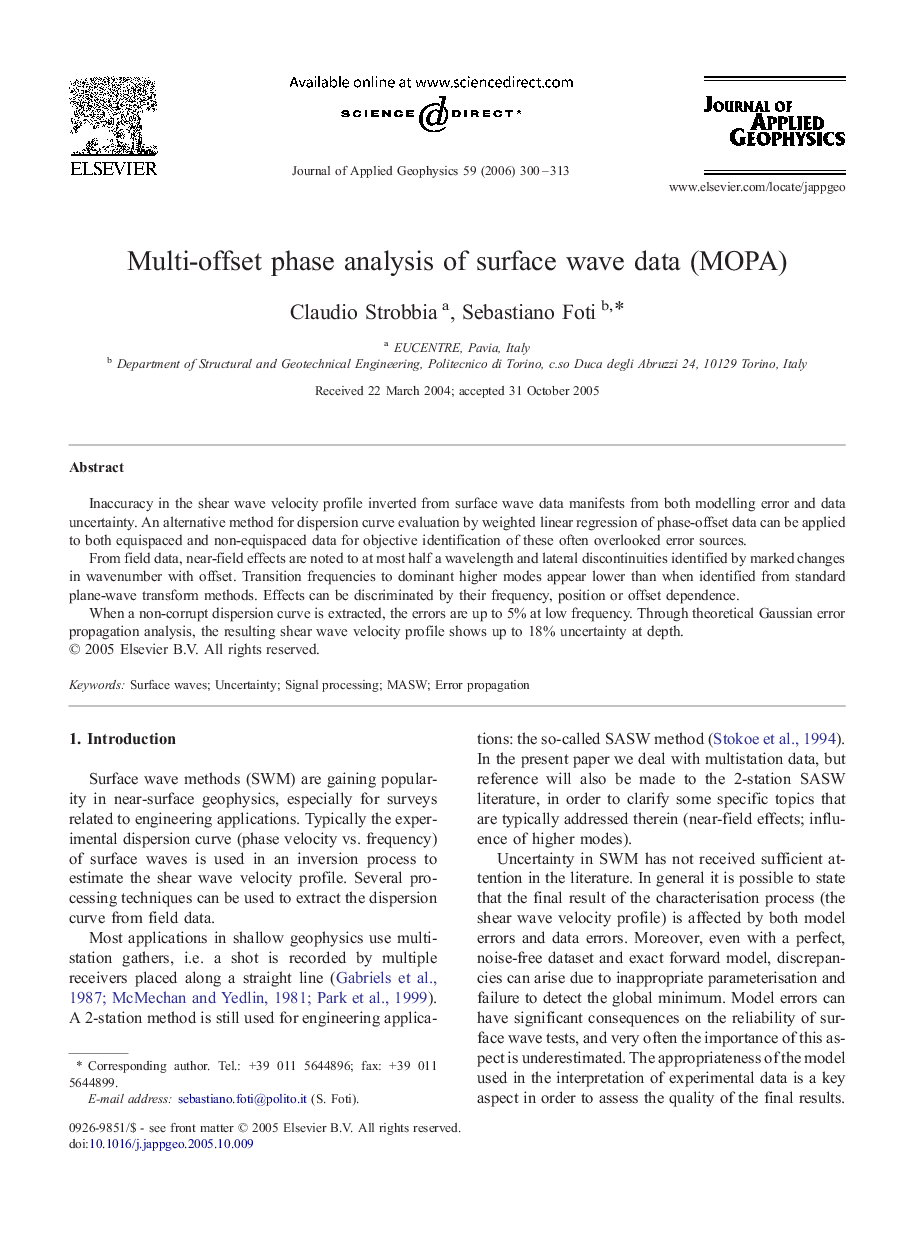

Multi-offset phase analysis of surface wave data (MOPA)

Inaccuracy in the shear wave velocity profile inverted from surface wave data manifests from both modelling error and data uncertainty. An alternative method for dispersion curve evaluation by weighted linear regression of phase-offset data can be applied to both equispaced and non-equispaced data for objective identification of these often overlooked error sources.From field data, near-field effects are noted to at most half a wavelength and lateral discontinuities identified by marked changes in wavenumber with offset. Transition frequencies to dominant higher modes appear lower than when identified from standard plane-wave transform methods. Effects can be discriminated by their frequency, position or offset dependence.When a non-corrupt dispersion curve is extracted, the errors are up to 5% at low frequency. Through theoretical Gaussian error propagation analysis, the resulting shear wave velocity profile shows up to 18% uncertainty at depth.
