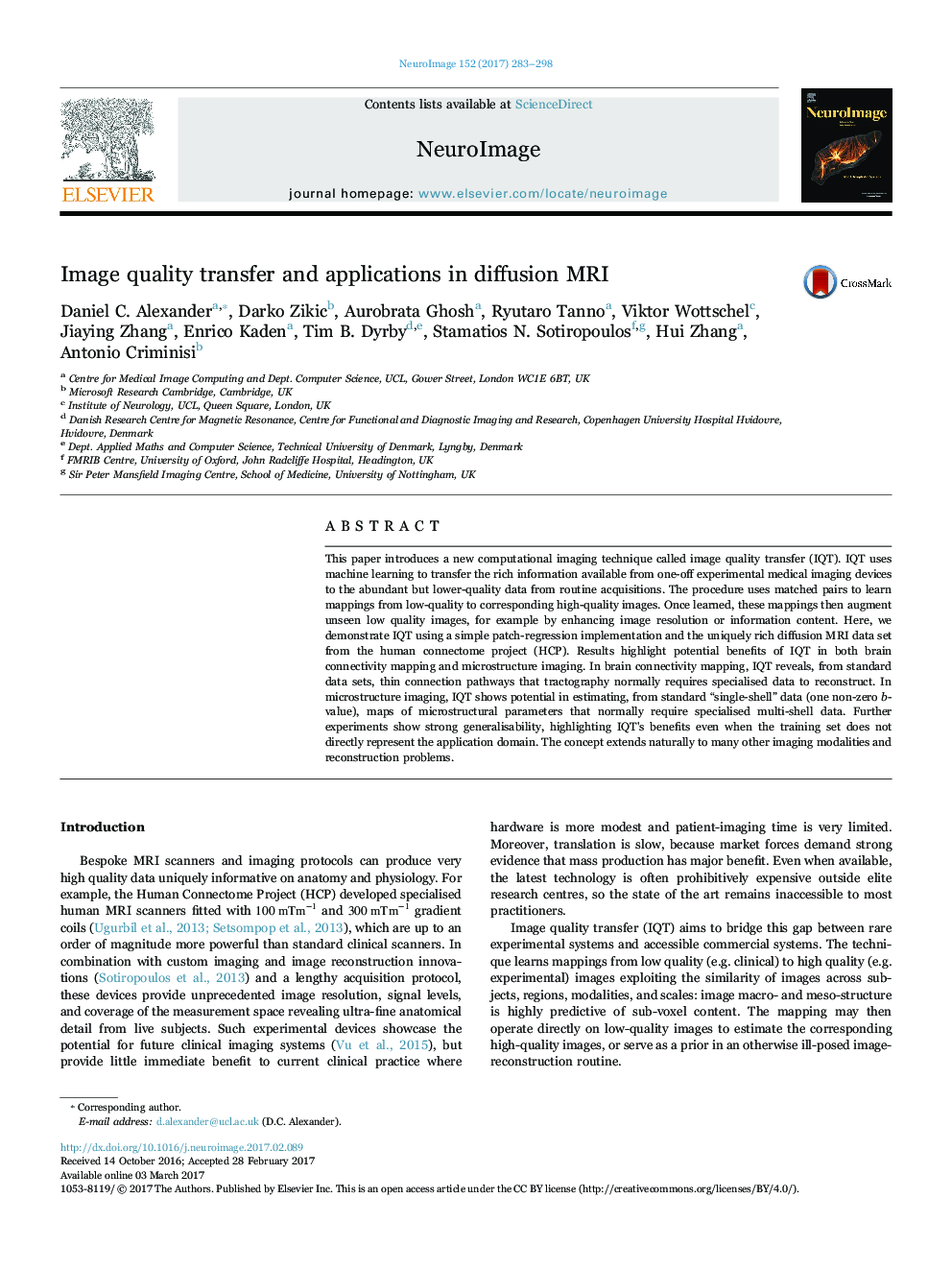

Image quality transfer and applications in diffusion MRI

- Image quality transfer propagates information from rare or expensive high quality images to abundant or cheap low quality images.
- Dramatically outperforms interpolation in resolution enhancement of diffusion MRI.
- Enables tractography to recover fine pathways normally only accessible at 1.25 mm resolution from 2.5 mm data sets.
- Provides plausible NODDI and SMT maps from single-shell input data.
- Requires only off-the-shelf and computationally light machine learning and imaging tools and complementary to other sparse reconstruction and super-resolution techniques.

This paper introduces a new computational imaging technique called image quality transfer (IQT). IQT uses machine learning to transfer the rich information available from one-off experimental medical imaging devices to the abundant but lower-quality data from routine acquisitions. The procedure uses matched pairs to learn mappings from low-quality to corresponding high-quality images. Once learned, these mappings then augment unseen low quality images, for example by enhancing image resolution or information content. Here, we demonstrate IQT using a simple patch-regression implementation and the uniquely rich diffusion MRI data set from the human connectome project (HCP). Results highlight potential benefits of IQT in both brain connectivity mapping and microstructure imaging. In brain connectivity mapping, IQT reveals, from standard data sets, thin connection pathways that tractography normally requires specialised data to reconstruct. In microstructure imaging, IQT shows potential in estimating, from standard “single-shell” data (one non-zero b-value), maps of microstructural parameters that normally require specialised multi-shell data. Further experiments show strong generalisability, highlighting IQT's benefits even when the training set does not directly represent the application domain. The concept extends naturally to many other imaging modalities and reconstruction problems.
