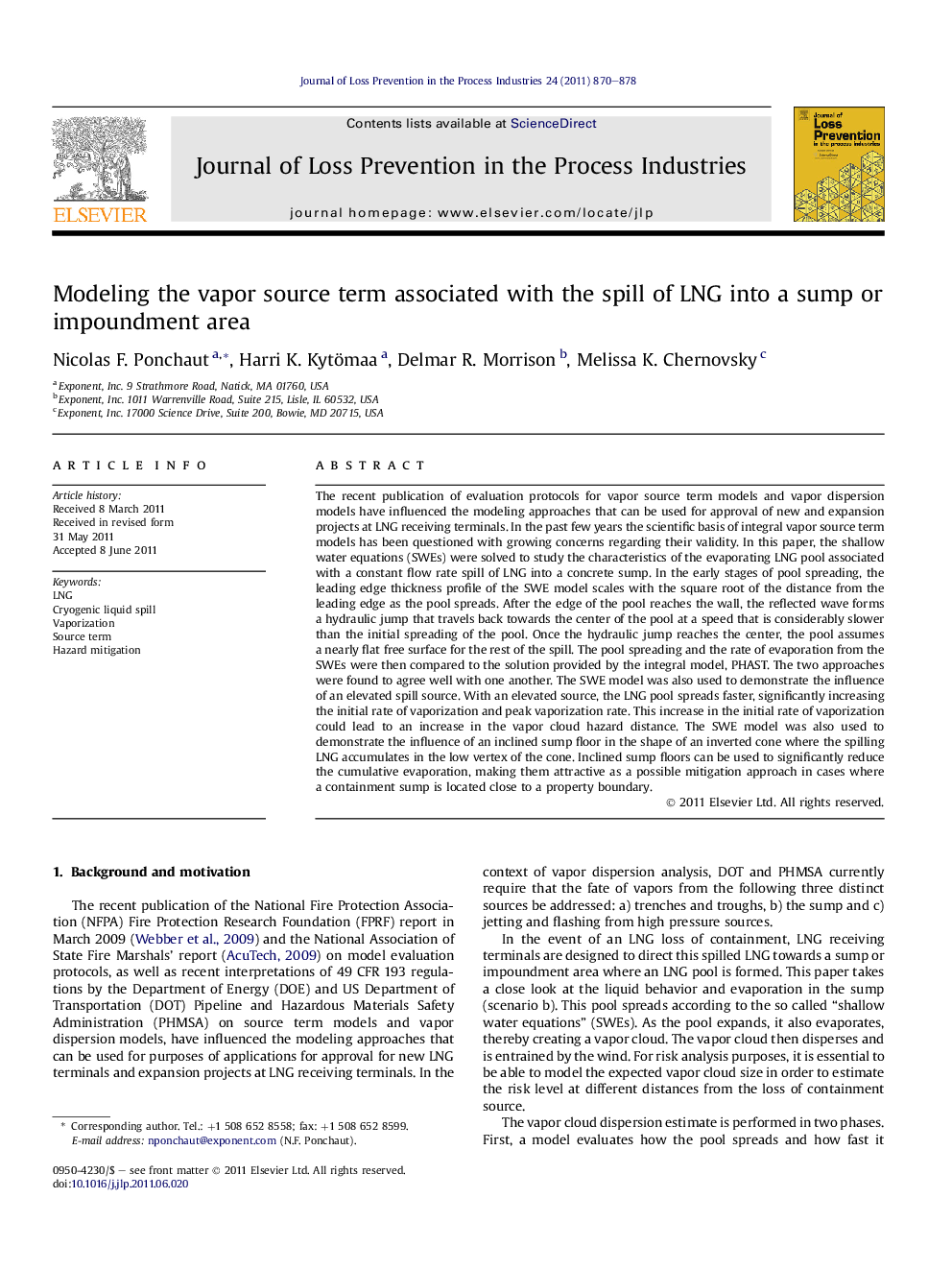

Modeling the vapor source term associated with the spill of LNG into a sump or impoundment area

The recent publication of evaluation protocols for vapor source term models and vapor dispersion models have influenced the modeling approaches that can be used for approval of new and expansion projects at LNG receiving terminals. In the past few years the scientific basis of integral vapor source term models has been questioned with growing concerns regarding their validity. In this paper, the shallow water equations (SWEs) were solved to study the characteristics of the evaporating LNG pool associated with a constant flow rate spill of LNG into a concrete sump. In the early stages of pool spreading, the leading edge thickness profile of the SWE model scales with the square root of the distance from the leading edge as the pool spreads. After the edge of the pool reaches the wall, the reflected wave forms a hydraulic jump that travels back towards the center of the pool at a speed that is considerably slower than the initial spreading of the pool. Once the hydraulic jump reaches the center, the pool assumes a nearly flat free surface for the rest of the spill. The pool spreading and the rate of evaporation from the SWEs were then compared to the solution provided by the integral model, PHAST. The two approaches were found to agree well with one another. The SWE model was also used to demonstrate the influence of an elevated spill source. With an elevated source, the LNG pool spreads faster, significantly increasing the initial rate of vaporization and peak vaporization rate. This increase in the initial rate of vaporization could lead to an increase in the vapor cloud hazard distance. The SWE model was also used to demonstrate the influence of an inclined sump floor in the shape of an inverted cone where the spilling LNG accumulates in the low vertex of the cone. Inclined sump floors can be used to significantly reduce the cumulative evaporation, making them attractive as a possible mitigation approach in cases where a containment sump is located close to a property boundary.

► Shallow water equations were solved for LNG spill pool spreading.
► The SWE model was compared to commonly used integral model, PHAST.
► The SWE model accommodates LNG sources at different elevations.
► Benefits of an inclined sump floor on the vaporization rate demonstrated.
