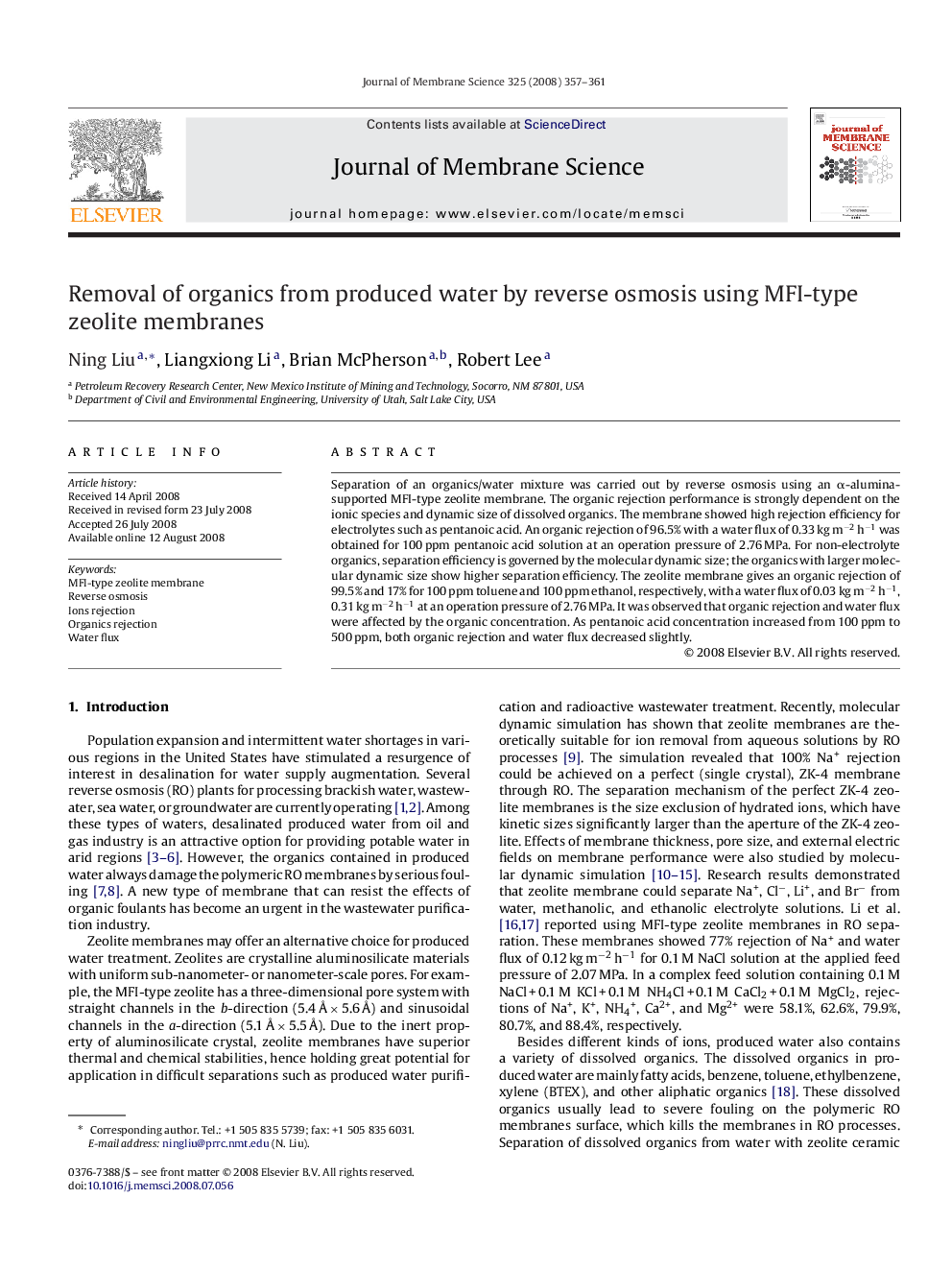

Removal of organics from produced water by reverse osmosis using MFI-type zeolite membranes

Separation of an organics/water mixture was carried out by reverse osmosis using an α-alumina-supported MFI-type zeolite membrane. The organic rejection performance is strongly dependent on the ionic species and dynamic size of dissolved organics. The membrane showed high rejection efficiency for electrolytes such as pentanoic acid. An organic rejection of 96.5% with a water flux of 0.33 kg m−2 h−1 was obtained for 100 ppm pentanoic acid solution at an operation pressure of 2.76 MPa. For non-electrolyte organics, separation efficiency is governed by the molecular dynamic size; the organics with larger molecular dynamic size show higher separation efficiency. The zeolite membrane gives an organic rejection of 99.5% and 17% for 100 ppm toluene and 100 ppm ethanol, respectively, with a water flux of 0.03 kg m−2 h−1, 0.31 kg m−2 h−1 at an operation pressure of 2.76 MPa. It was observed that organic rejection and water flux were affected by the organic concentration. As pentanoic acid concentration increased from 100 ppm to 500 ppm, both organic rejection and water flux decreased slightly.
