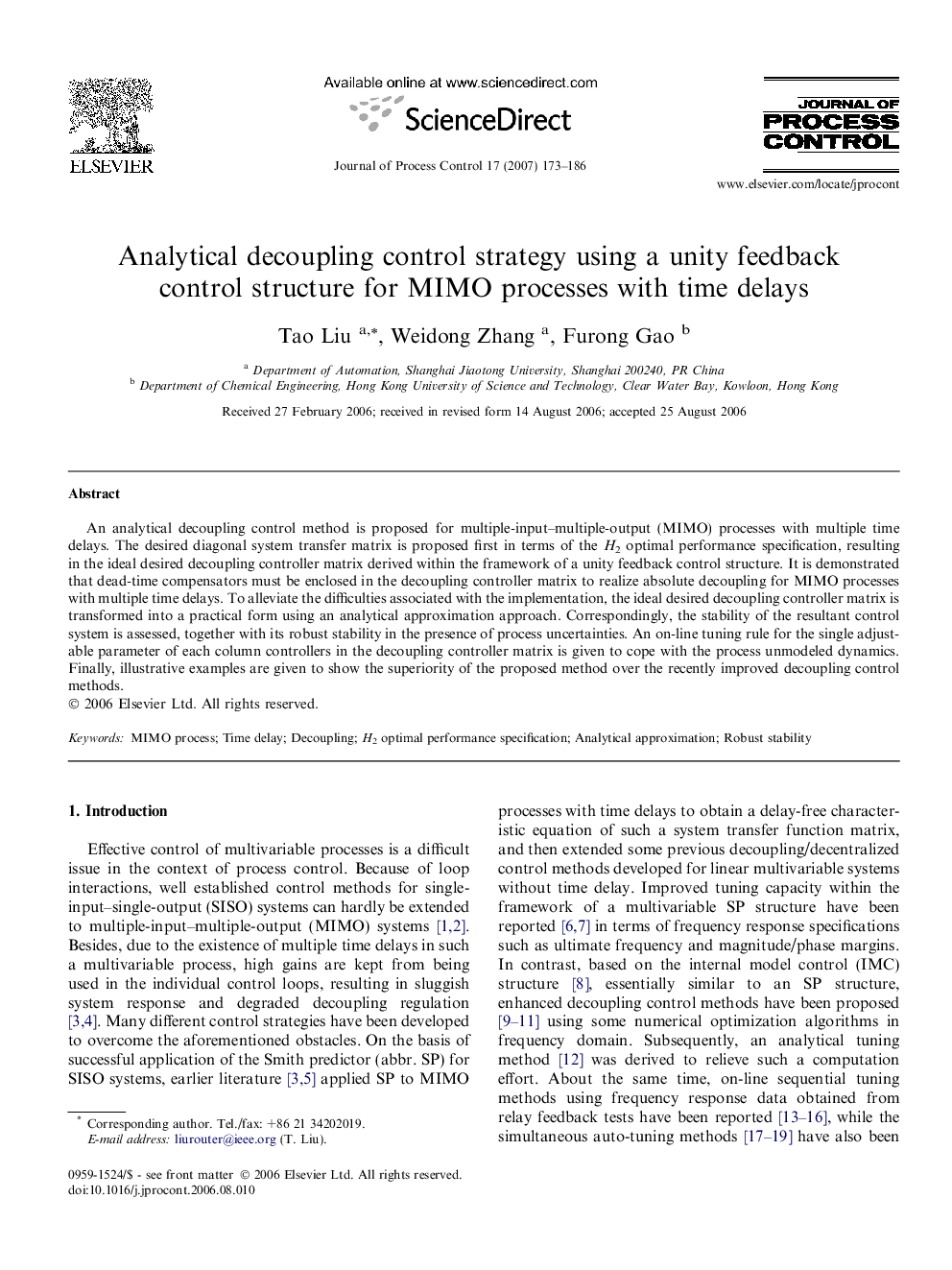

Analytical decoupling control strategy using a unity feedback control structure for MIMO processes with time delays

An analytical decoupling control method is proposed for multiple-input-multiple-output (MIMO) processes with multiple time delays. The desired diagonal system transfer matrix is proposed first in terms of the H2 optimal performance specification, resulting in the ideal desired decoupling controller matrix derived within the framework of a unity feedback control structure. It is demonstrated that dead-time compensators must be enclosed in the decoupling controller matrix to realize absolute decoupling for MIMO processes with multiple time delays. To alleviate the difficulties associated with the implementation, the ideal desired decoupling controller matrix is transformed into a practical form using an analytical approximation approach. Correspondingly, the stability of the resultant control system is assessed, together with its robust stability in the presence of process uncertainties. An on-line tuning rule for the single adjustable parameter of each column controllers in the decoupling controller matrix is given to cope with the process unmodeled dynamics. Finally, illustrative examples are given to show the superiority of the proposed method over the recently improved decoupling control methods.
