Exergo-economic analysis of humidification-dehumidification (HDH) desalination systems driven by heat pump (HP)
موضوعات مرتبط
مهندسی و علوم پایه مهندسی شیمی تصفیه و جداسازی

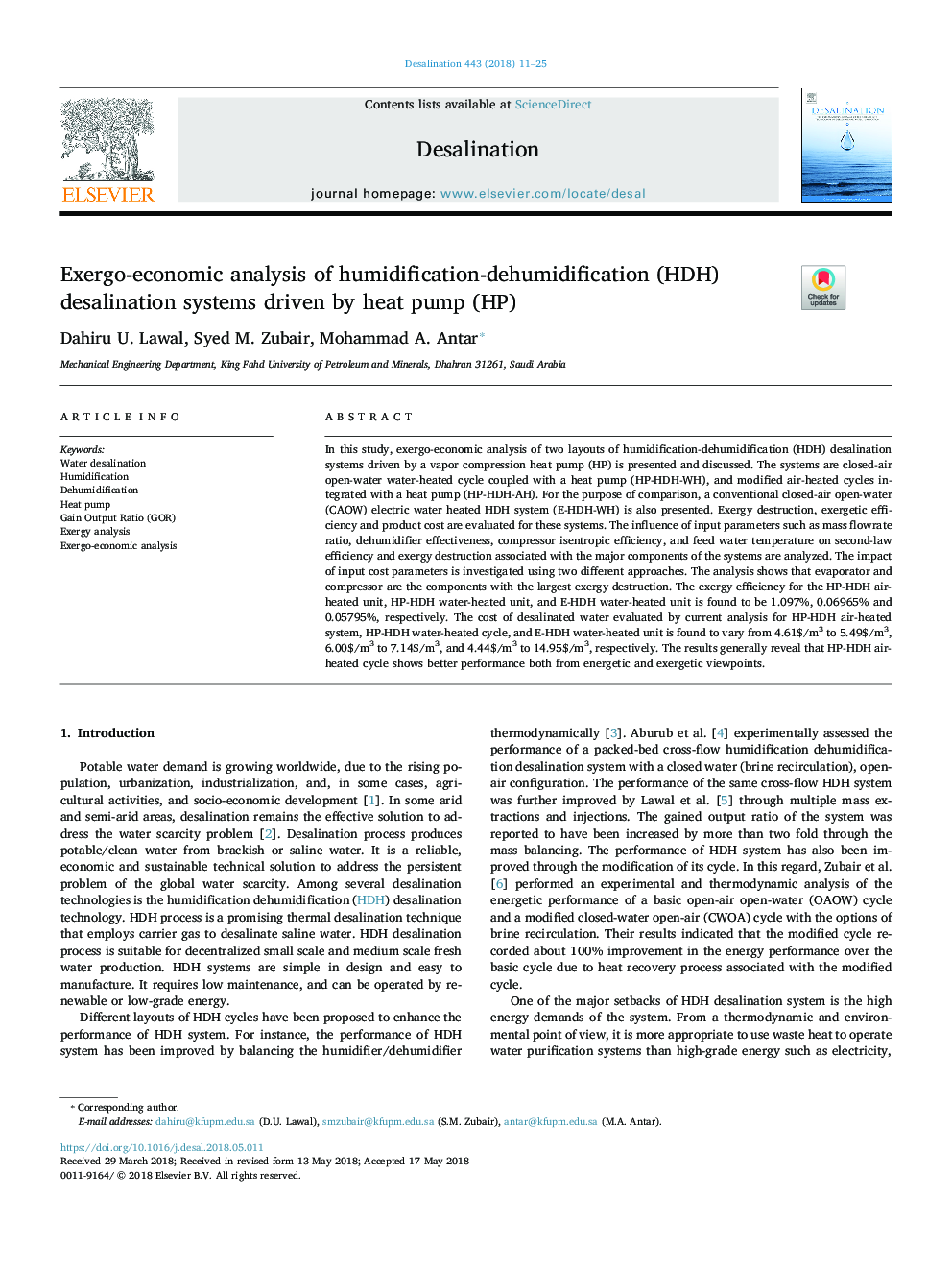

پیش نمایش صفحه اول مقاله
Exergo-economic analysis of humidification-dehumidification (HDH) desalination systems driven by heat pump (HP)
چکیده انگلیسی
In this study, exergo-economic analysis of two layouts of humidification-dehumidification (HDH) desalination systems driven by a vapor compression heat pump (HP) is presented and discussed. The systems are closed-air open-water water-heated cycle coupled with a heat pump (HP-HDH-WH), and modified air-heated cycles integrated with a heat pump (HP-HDH-AH). For the purpose of comparison, a conventional closed-air open-water (CAOW) electric water heated HDH system (E-HDH-WH) is also presented. Exergy destruction, exergetic efficiency and product cost are evaluated for these systems. The influence of input parameters such as mass flowrate ratio, dehumidifier effectiveness, compressor isentropic efficiency, and feed water temperature on second-law efficiency and exergy destruction associated with the major components of the systems are analyzed. The impact of input cost parameters is investigated using two different approaches. The analysis shows that evaporator and compressor are the components with the largest exergy destruction. The exergy efficiency for the HP-HDH air-heated unit, HP-HDH water-heated unit, and E-HDH water-heated unit is found to be 1.097%, 0.06965% and 0.05795%, respectively. The cost of desalinated water evaluated by current analysis for HP-HDH air-heated system, HP-HDH water-heated cycle, and E-HDH water-heated unit is found to vary from 4.61$/m3 to 5.49$/m3, 6.00$/m3 to 7.14$/m3, and 4.44$/m3 to 14.95$/m3, respectively. The results generally reveal that HP-HDH air-heated cycle shows better performance both from energetic and exergetic viewpoints.
ناشر
Database: Elsevier - ScienceDirect (ساینس دایرکت)
Journal: Desalination - Volume 443, 1 October 2018, Pages 11-25
