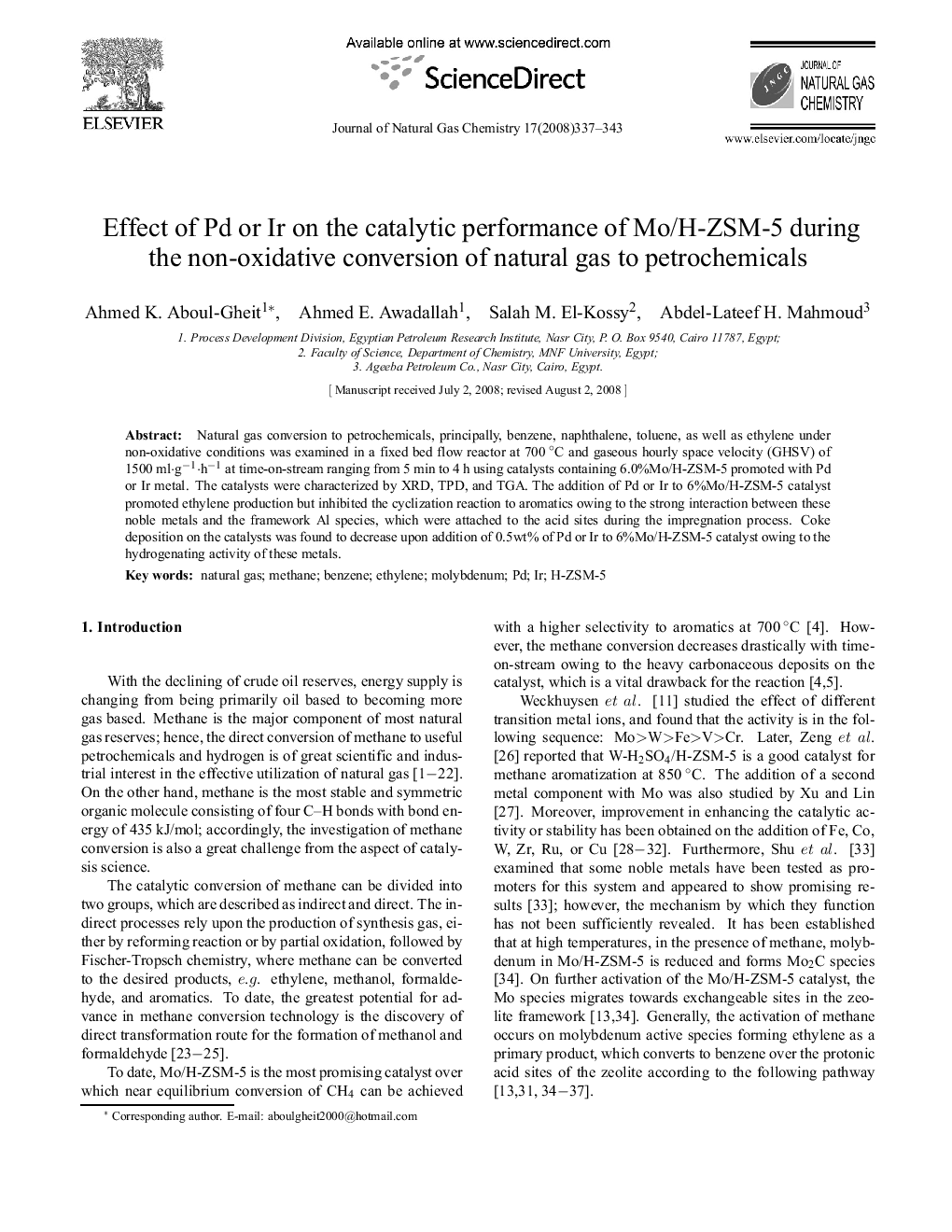

Effect of Pd or Ir on the catalytic performance of Mo/H-ZSM-5 during the non-oxidative conversion of natural gas to petrochemicals

Natural gas conversion to petrochemicals, principally, benzene, naphthalene, toluene, as well as ethylene under non-oxidative conditions was examined in a fixed bed flow reactor at 700°C and gaseous hourly space velocity (GHSV) of 1500 ml·g−1·h−1 at time-on-stream ranging from 5 min to 4 h using catalysts containing 6.0%Mo/H-ZSM-5 promoted with Pd or Ir metal. The catalysts were characterized by XRD, TPD, and TGA. The addition of Pd or Ir to 6%Mo/H-ZSM-5 catalyst promoted ethylene production but inhibited the cyclization reaction to aromatics owing to the strong interaction between these noble metals and the framework Al species, which were attached to the acid sites during the impregnation process. Coke deposition on the catalysts was found to decrease upon addition of 0.5wt% of Pd or Ir to 6%Mo/H-ZSM-5 catalyst owing to the hydrogenating activity of these metals.
