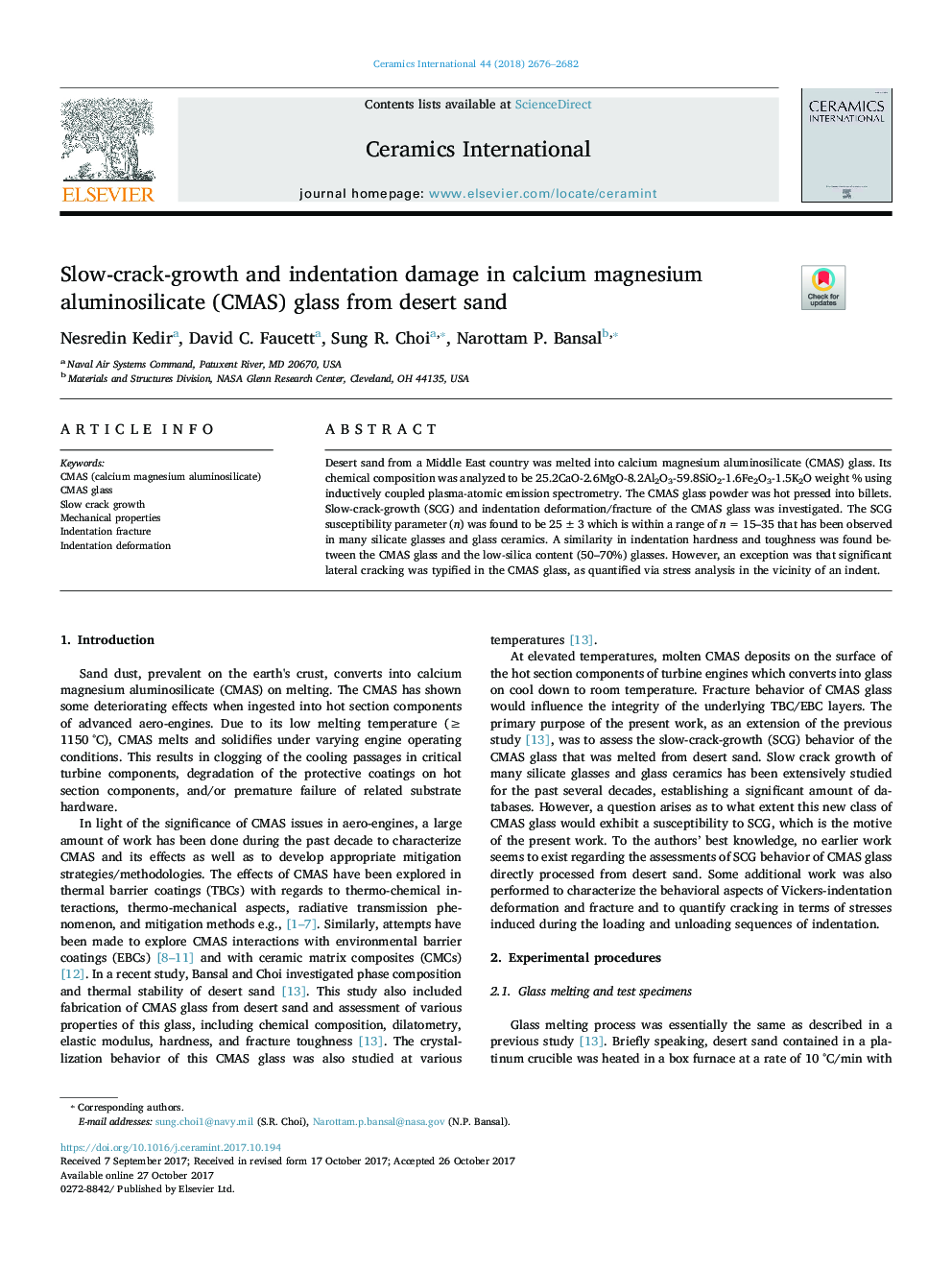

Slow-crack-growth and indentation damage in calcium magnesium aluminosilicate (CMAS) glass from desert sand

Desert sand from a Middle East country was melted into calcium magnesium aluminosilicate (CMAS) glass. Its chemical composition was analyzed to be 25.2CaO-2.6MgO-8.2Al2O3-59.8SiO2-1.6Fe2O3-1.5K2O weight % using inductively coupled plasma-atomic emission spectrometry. The CMAS glass powder was hot pressed into billets. Slow-crack-growth (SCG) and indentation deformation/fracture of the CMAS glass was investigated. The SCG susceptibility parameter (n) was found to be 25 ± 3 which is within a range of n = 15-35 that has been observed in many silicate glasses and glass ceramics. A similarity in indentation hardness and toughness was found between the CMAS glass and the low-silica content (50-70%) glasses. However, an exception was that significant lateral cracking was typified in the CMAS glass, as quantified via stress analysis in the vicinity of an indent.
