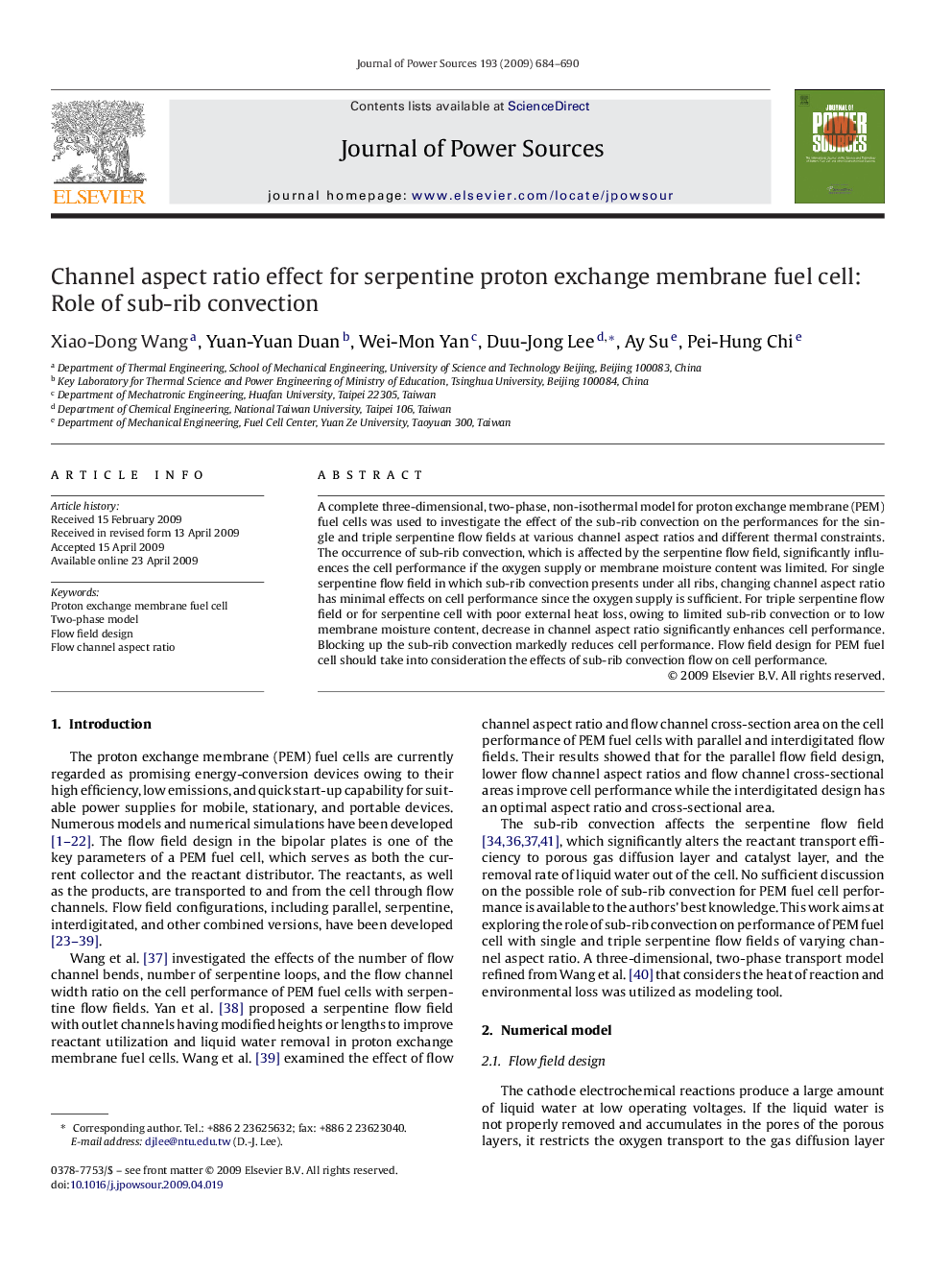

Channel aspect ratio effect for serpentine proton exchange membrane fuel cell: Role of sub-rib convection

A complete three-dimensional, two-phase, non-isothermal model for proton exchange membrane (PEM) fuel cells was used to investigate the effect of the sub-rib convection on the performances for the single and triple serpentine flow fields at various channel aspect ratios and different thermal constraints. The occurrence of sub-rib convection, which is affected by the serpentine flow field, significantly influences the cell performance if the oxygen supply or membrane moisture content was limited. For single serpentine flow field in which sub-rib convection presents under all ribs, changing channel aspect ratio has minimal effects on cell performance since the oxygen supply is sufficient. For triple serpentine flow field or for serpentine cell with poor external heat loss, owing to limited sub-rib convection or to low membrane moisture content, decrease in channel aspect ratio significantly enhances cell performance. Blocking up the sub-rib convection markedly reduces cell performance. Flow field design for PEM fuel cell should take into consideration the effects of sub-rib convection flow on cell performance.
