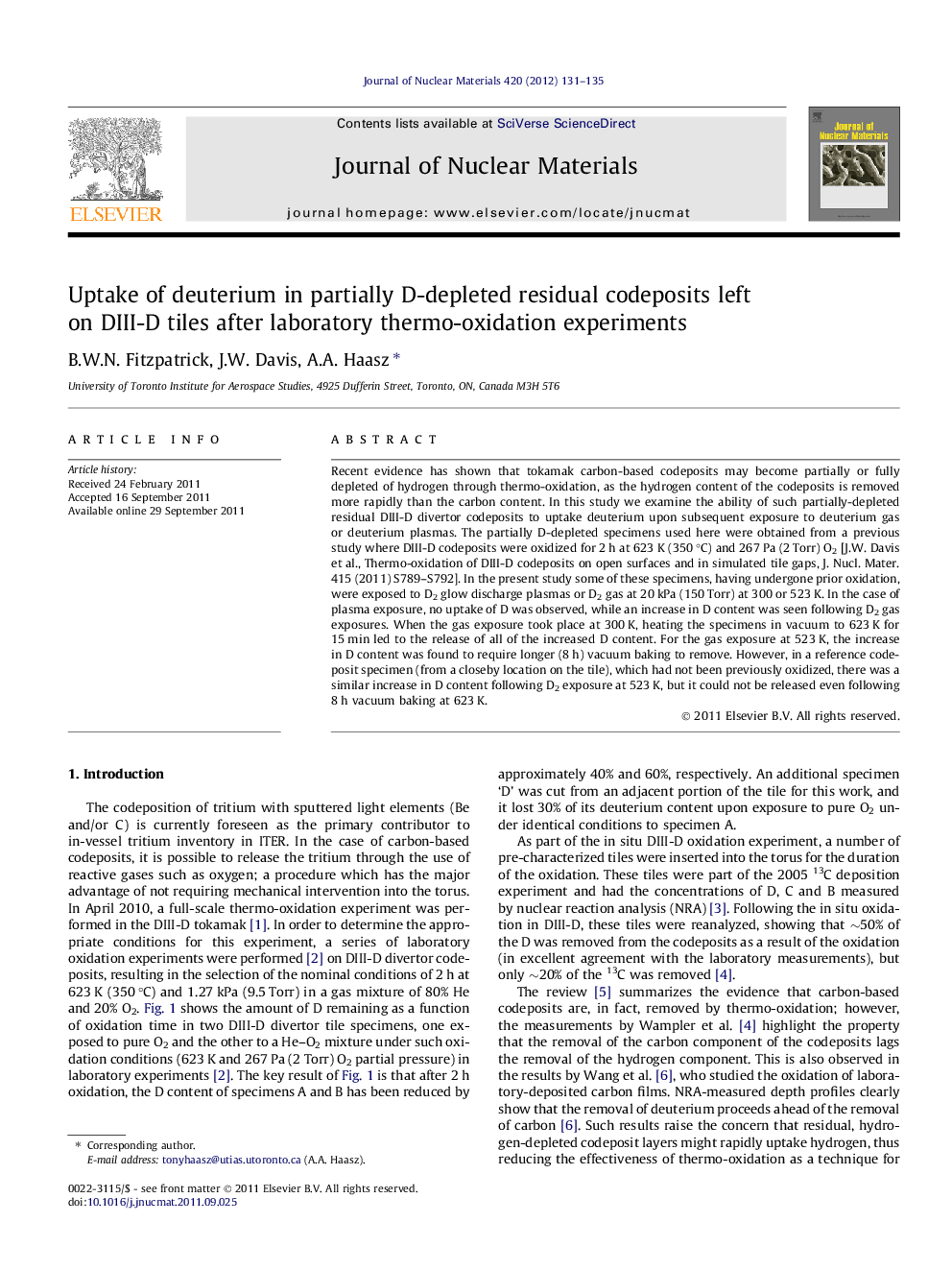

Uptake of deuterium in partially D-depleted residual codeposits left on DIII-D tiles after laboratory thermo-oxidation experiments

Recent evidence has shown that tokamak carbon-based codeposits may become partially or fully depleted of hydrogen through thermo-oxidation, as the hydrogen content of the codeposits is removed more rapidly than the carbon content. In this study we examine the ability of such partially-depleted residual DIII-D divertor codeposits to uptake deuterium upon subsequent exposure to deuterium gas or deuterium plasmas. The partially D-depleted specimens used here were obtained from a previous study where DIII-D codeposits were oxidized for 2 h at 623 K (350 °C) and 267 Pa (2 Torr) O2 [J.W. Davis et al., Thermo-oxidation of DIII-D codeposits on open surfaces and in simulated tile gaps, J. Nucl. Mater. 415 (2011) S789-S792]. In the present study some of these specimens, having undergone prior oxidation, were exposed to D2 glow discharge plasmas or D2 gas at 20 kPa (150 Torr) at 300 or 523 K. In the case of plasma exposure, no uptake of D was observed, while an increase in D content was seen following D2 gas exposures. When the gas exposure took place at 300 K, heating the specimens in vacuum to 623 K for 15 min led to the release of all of the increased D content. For the gas exposure at 523 K, the increase in D content was found to require longer (8 h) vacuum baking to remove. However, in a reference codeposit specimen (from a closeby location on the tile), which had not been previously oxidized, there was a similar increase in D content following D2 exposure at 523 K, but it could not be released even following 8 h vacuum baking at 623 K.
