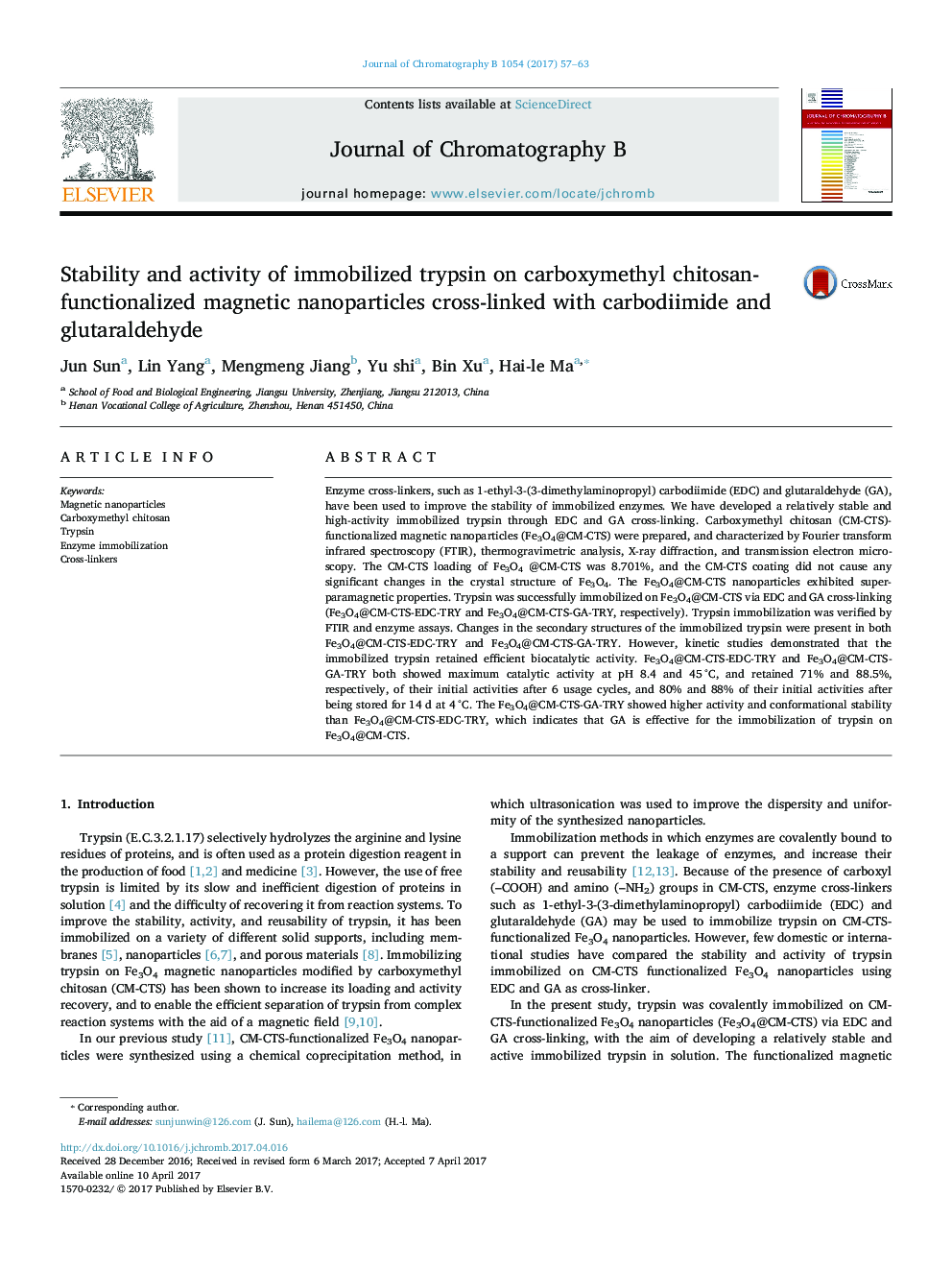

Stability and activity of immobilized trypsin on carboxymethyl chitosan-functionalized magnetic nanoparticles cross-linked with carbodiimide and glutaraldehyde

- Carboxymethyl chitosan (CM-CTS) functioned magnetic nanoparticles (shorted as Fe3O4@CM-CTS).
- Fe3O4@CM-CTS were synthesized by ultrasonic assisted chemical co-precipitating method.
- The immobilized trypsin were shorted as Fe3O4@CM-CTS-EDC-TRY and Fe3O4@CM-CTS-GA-TRY via EDC and GA cross linking.
- The successful trypsin immobilization was testified by FTIR and enzymes assays.
- Fe3O4@CM-CTS-GA-TRY showed higher activity and conformation stability than Fe3O4@CM-CTS-EDC-TRY.

Enzyme cross-linkers, such as 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDC) and glutaraldehyde (GA), have been used to improve the stability of immobilized enzymes. We have developed a relatively stable and high-activity immobilized trypsin through EDC and GA cross-linking. Carboxymethyl chitosan (CM-CTS)-functionalized magnetic nanoparticles (Fe3O4@CM-CTS) were prepared, and characterized by Fourier transform infrared spectroscopy (FTIR), thermogravimetric analysis, X-ray diffraction, and transmission electron microscopy. The CM-CTS loading of Fe3O4 @CM-CTS was 8.701%, and the CM-CTS coating did not cause any significant changes in the crystal structure of Fe3O4. The Fe3O4@CM-CTS nanoparticles exhibited superparamagnetic properties. Trypsin was successfully immobilized on Fe3O4@CM-CTS via EDC and GA cross-linking (Fe3O4@CM-CTS-EDC-TRY and Fe3O4@CM-CTS-GA-TRY, respectively). Trypsin immobilization was verified by FTIR and enzyme assays. Changes in the secondary structures of the immobilized trypsin were present in both Fe3O4@CM-CTS-EDC-TRY and Fe3O4@CM-CTS-GA-TRY. However, kinetic studies demonstrated that the immobilized trypsin retained efficient biocatalytic activity. Fe3O4@CM-CTS-EDC-TRY and Fe3O4@CM-CTS-GA-TRY both showed maximum catalytic activity at pH 8.4 and 45 °C, and retained 71% and 88.5%, respectively, of their initial activities after 6 usage cycles, and 80% and 88% of their initial activities after being stored for 14 d at 4 °C. The Fe3O4@CM-CTS-GA-TRY showed higher activity and conformational stability than Fe3O4@CM-CTS-EDC-TRY, which indicates that GA is effective for the immobilization of trypsin on Fe3O4@CM-CTS.
