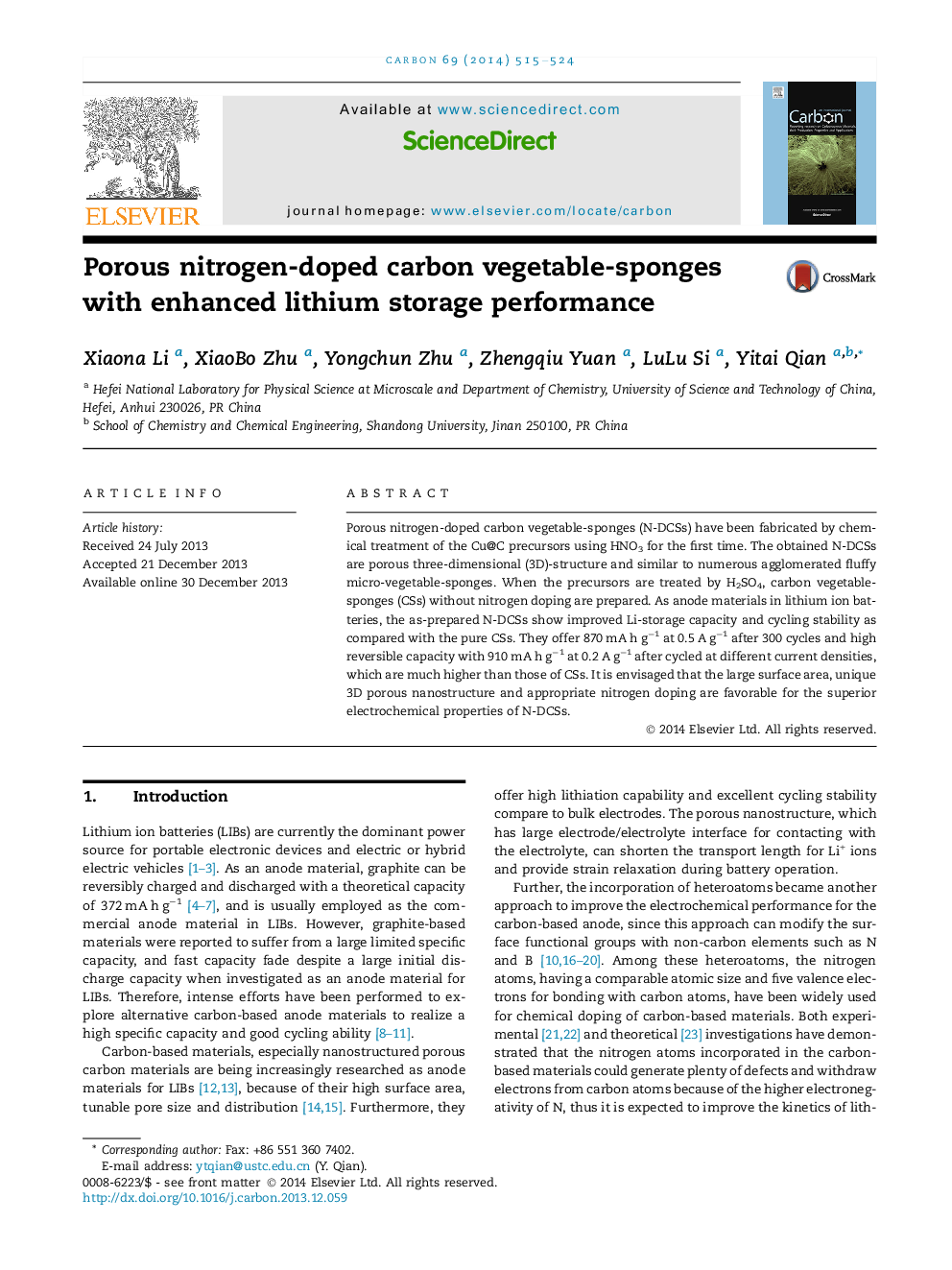

Porous nitrogen-doped carbon vegetable-sponges with enhanced lithium storage performance

Porous nitrogen-doped carbon vegetable-sponges (N-DCSs) have been fabricated by chemical treatment of the Cu@C precursors using HNO3 for the first time. The obtained N-DCSs are porous three-dimensional (3D)-structure and similar to numerous agglomerated fluffy micro-vegetable-sponges. When the precursors are treated by H2SO4, carbon vegetable-sponges (CSs) without nitrogen doping are prepared. As anode materials in lithium ion batteries, the as-prepared N-DCSs show improved Li-storage capacity and cycling stability as compared with the pure CSs. They offer 870 mA h g−1 at 0.5 A g−1 after 300 cycles and high reversible capacity with 910 mA h g−1 at 0.2 A g−1 after cycled at different current densities, which are much higher than those of CSs. It is envisaged that the large surface area, unique 3D porous nanostructure and appropriate nitrogen doping are favorable for the superior electrochemical properties of N-DCSs.
