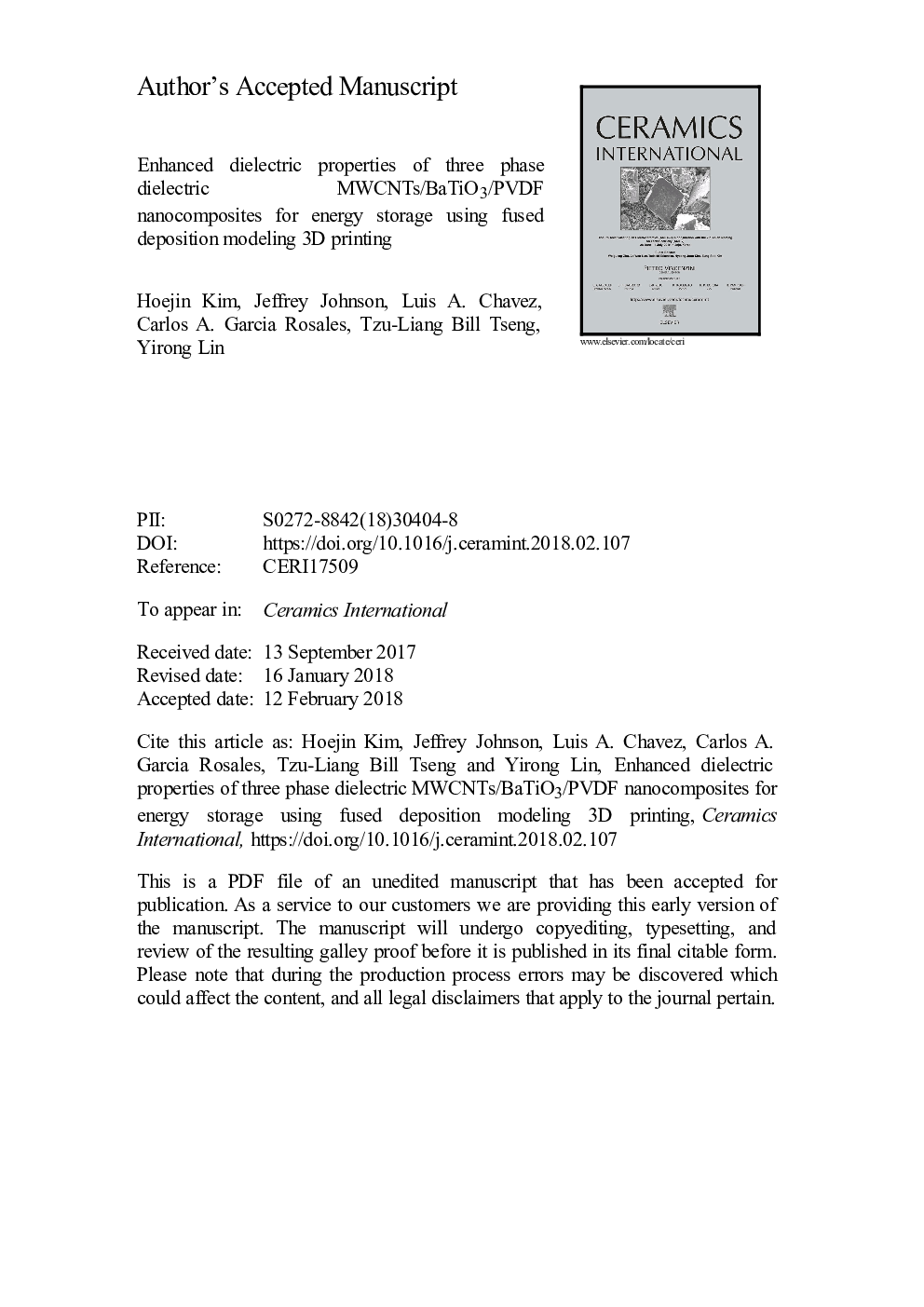

Enhanced dielectric properties of three phase dielectric MWCNTs/BaTiO3/PVDF nanocomposites for energy storage using fused deposition modeling 3D printing

This research studied the effect of fused deposition modeling (FDM) 3D printing on three phase dielectric nanocomposites using poly(vinylidene) fluoride (PVDF), BaTiO3 (BT), and multiwall carbon nanotubes (CNTs). PVDF polymer and BT ceramics are piezo-, pyro- and di-electric materials extensively used for sensor and energy storage/harvesting applications due to their unique characteristic of dipole polarization. To increase dielectric property, CNTs have been recently utilized for uniform dispersion of BT nanoparticles, ultrahigh polarization density, and local micro-capacitor among matrix. It was proved that 3D printing process provides homogeneous dispersion of nanoparticles, alleviating agglomeration of nanoparticles and reducing micro-crack/voids in matrix which can potentially enhance their dielectric property than traditional methods. In this research, these three-phase nanocomposites are fabricated through FDM 3D printing process and characterized for dielectric property. Increasing both BT and CNT nanoparticles improves dielectric properties, while CNTs have a percolation threshold near 1.7 wt%. The most desirable combination of dielectric constant and loss properties (118 and 0.11 at 1 kHz) is achieved with nanocomposites containing 1.7 wt%-CNT/45 wt%-BT/PVDF. These results provide not only a technique to 3D print dielectric nanocomposites with improved dielectric property but also large-scale electronic device manufacturing possibility with freedom of design, low cost, and faster process.
