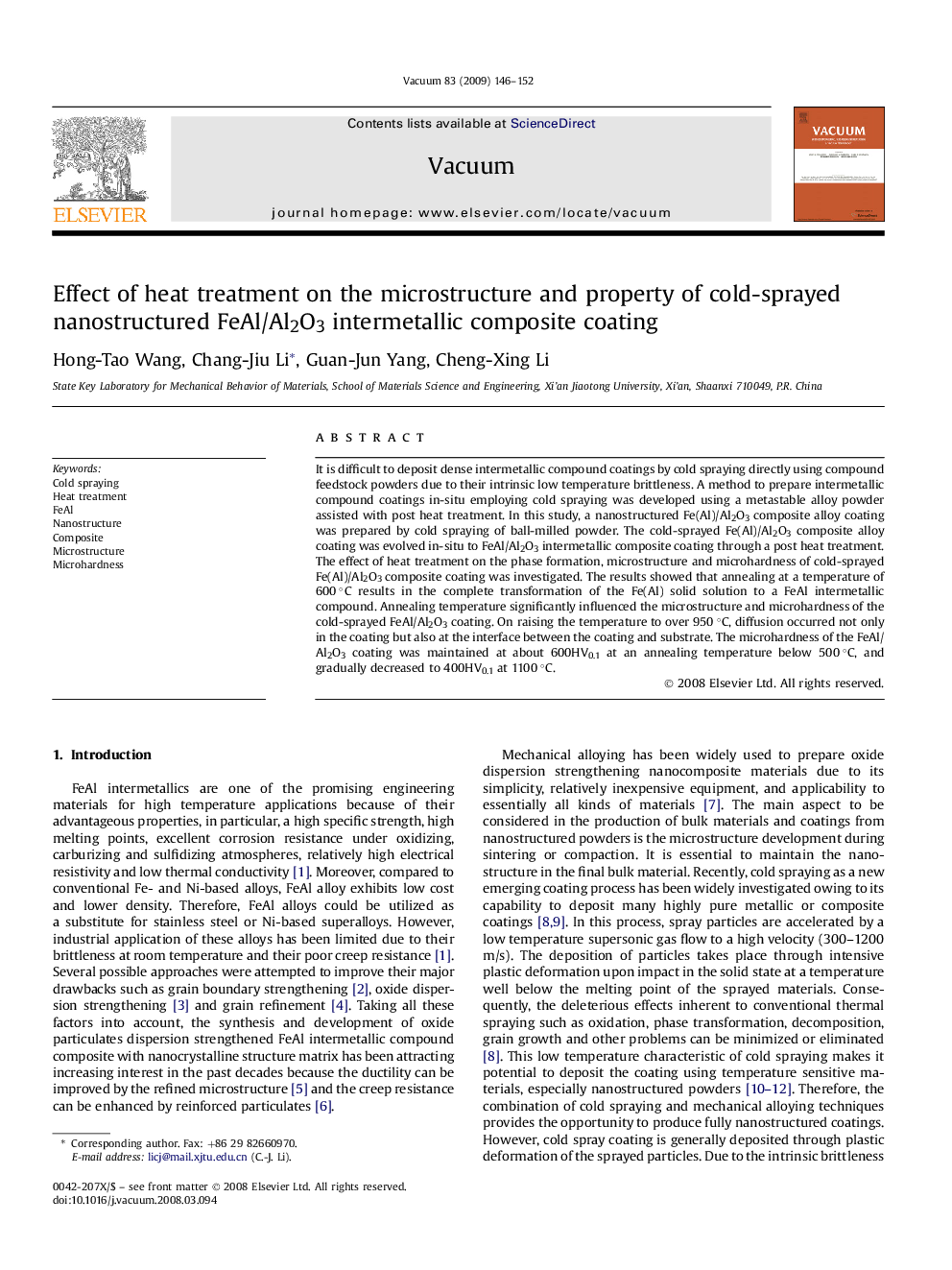

Effect of heat treatment on the microstructure and property of cold-sprayed nanostructured FeAl/Al2O3 intermetallic composite coating

It is difficult to deposit dense intermetallic compound coatings by cold spraying directly using compound feedstock powders due to their intrinsic low temperature brittleness. A method to prepare intermetallic compound coatings in-situ employing cold spraying was developed using a metastable alloy powder assisted with post heat treatment. In this study, a nanostructured Fe(Al)/Al2O3 composite alloy coating was prepared by cold spraying of ball-milled powder. The cold-sprayed Fe(Al)/Al2O3 composite alloy coating was evolved in-situ to FeAl/Al2O3 intermetallic composite coating through a post heat treatment. The effect of heat treatment on the phase formation, microstructure and microhardness of cold-sprayed Fe(Al)/Al2O3 composite coating was investigated. The results showed that annealing at a temperature of 600 °C results in the complete transformation of the Fe(Al) solid solution to a FeAl intermetallic compound. Annealing temperature significantly influenced the microstructure and microhardness of the cold-sprayed FeAl/Al2O3 coating. On raising the temperature to over 950 °C, diffusion occurred not only in the coating but also at the interface between the coating and substrate. The microhardness of the FeAl/Al2O3 coating was maintained at about 600HV0.1 at an annealing temperature below 500 °C, and gradually decreased to 400HV0.1 at 1100 °C.
