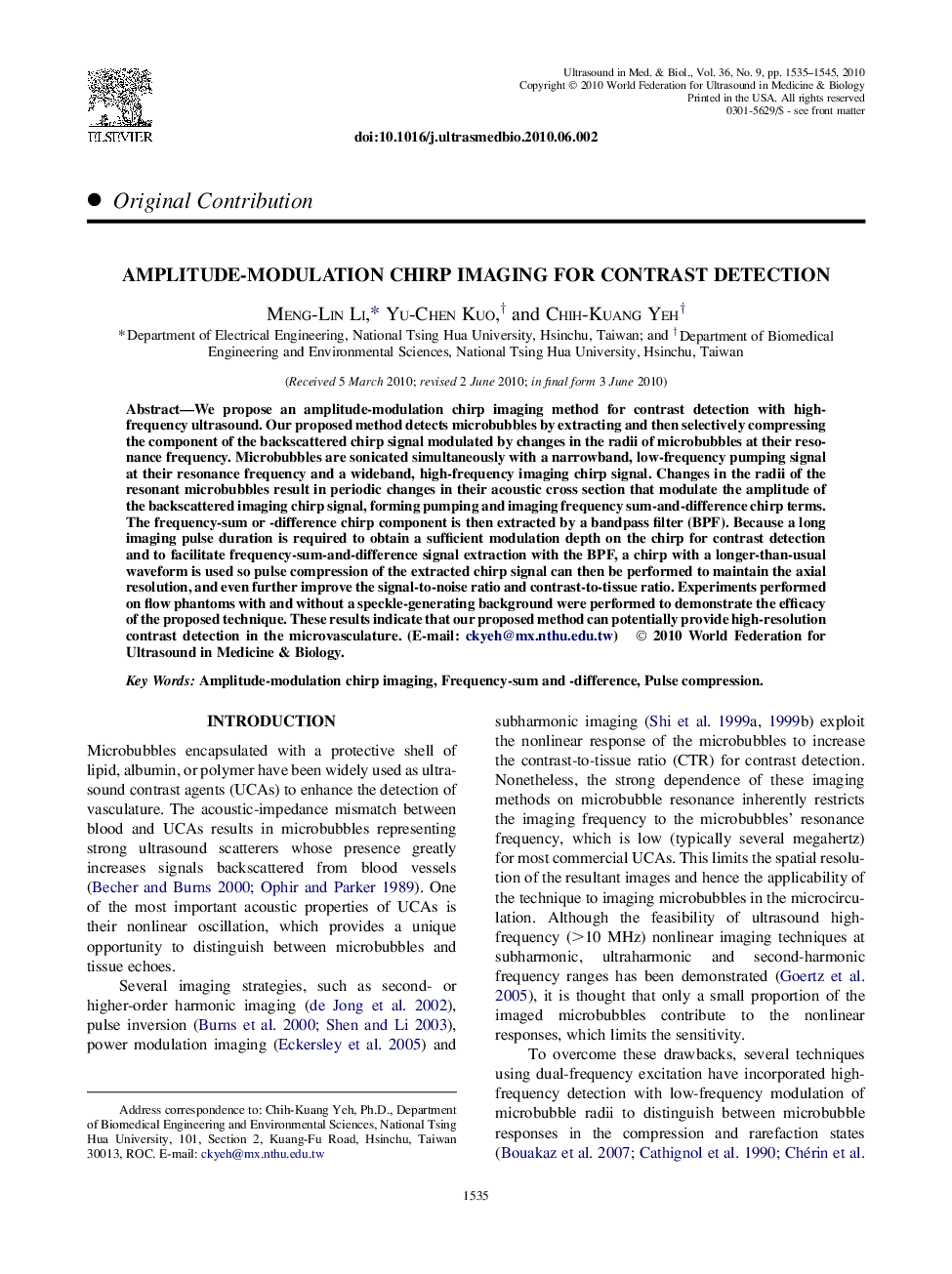

Amplitude-Modulation Chirp Imaging for Contrast Detection

We propose an amplitude-modulation chirp imaging method for contrast detection with high-frequency ultrasound. Our proposed method detects microbubbles by extracting and then selectively compressing the component of the backscattered chirp signal modulated by changes in the radii of microbubbles at their resonance frequency. Microbubbles are sonicated simultaneously with a narrowband, low-frequency pumping signal at their resonance frequency and a wideband, high-frequency imaging chirp signal. Changes in the radii of the resonant microbubbles result in periodic changes in their acoustic cross section that modulate the amplitude of the backscattered imaging chirp signal, forming pumping and imaging frequency sum-and-difference chirp terms. The frequency-sum or -difference chirp component is then extracted by a bandpass filter (BPF). Because a long imaging pulse duration is required to obtain a sufficient modulation depth on the chirp for contrast detection and to facilitate frequency-sum-and-difference signal extraction with the BPF, a chirp with a longer-than-usual waveform is used so pulse compression of the extracted chirp signal can then be performed to maintain the axial resolution, and even further improve the signal-to-noise ratio and contrast-to-tissue ratio. Experiments performed on flow phantoms with and without a speckle-generating background were performed to demonstrate the efficacy of the proposed technique. These results indicate that our proposed method can potentially provide high-resolution contrast detection in the microvasculature. (E-mail: ckyeh@mx.nthu.edu.tw)
