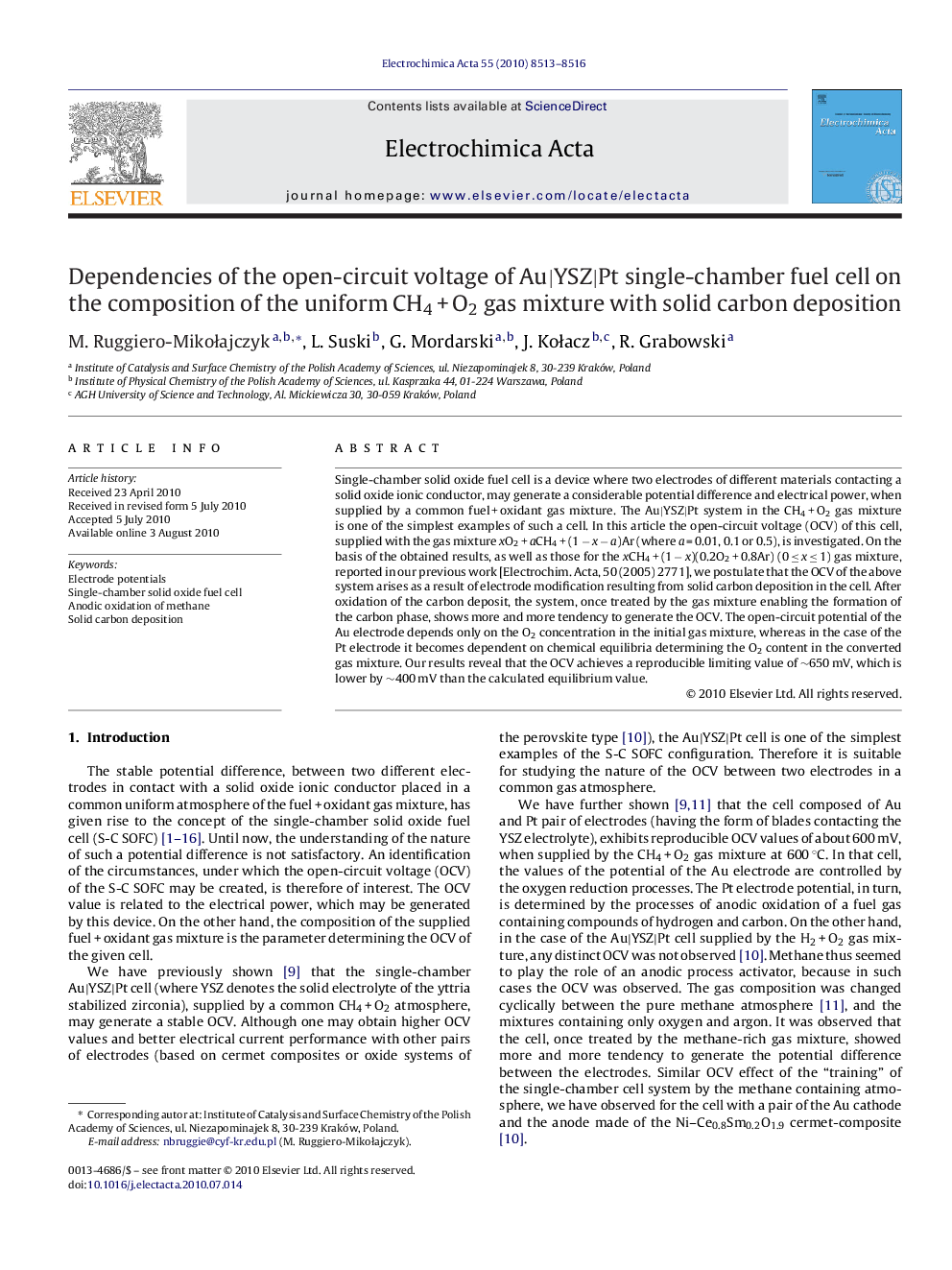

Dependencies of the open-circuit voltage of Au|YSZ|Pt single-chamber fuel cell on the composition of the uniform CH4 + O2 gas mixture with solid carbon deposition

Single-chamber solid oxide fuel cell is a device where two electrodes of different materials contacting a solid oxide ionic conductor, may generate a considerable potential difference and electrical power, when supplied by a common fuel + oxidant gas mixture. The Au|YSZ|Pt system in the CH4 + O2 gas mixture is one of the simplest examples of such a cell. In this article the open-circuit voltage (OCV) of this cell, supplied with the gas mixture xO2 + aCH4 + (1 − x − a)Ar (where a = 0.01, 0.1 or 0.5), is investigated. On the basis of the obtained results, as well as those for the xCH4 + (1 − x)(0.2O2 + 0.8Ar) (0 ≤ x ≤ 1) gas mixture, reported in our previous work [Electrochim. Acta, 50 (2005) 2771], we postulate that the OCV of the above system arises as a result of electrode modification resulting from solid carbon deposition in the cell. After oxidation of the carbon deposit, the system, once treated by the gas mixture enabling the formation of the carbon phase, shows more and more tendency to generate the OCV. The open-circuit potential of the Au electrode depends only on the O2 concentration in the initial gas mixture, whereas in the case of the Pt electrode it becomes dependent on chemical equilibria determining the O2 content in the converted gas mixture. Our results reveal that the OCV achieves a reproducible limiting value of ∼650 mV, which is lower by ∼400 mV than the calculated equilibrium value.
