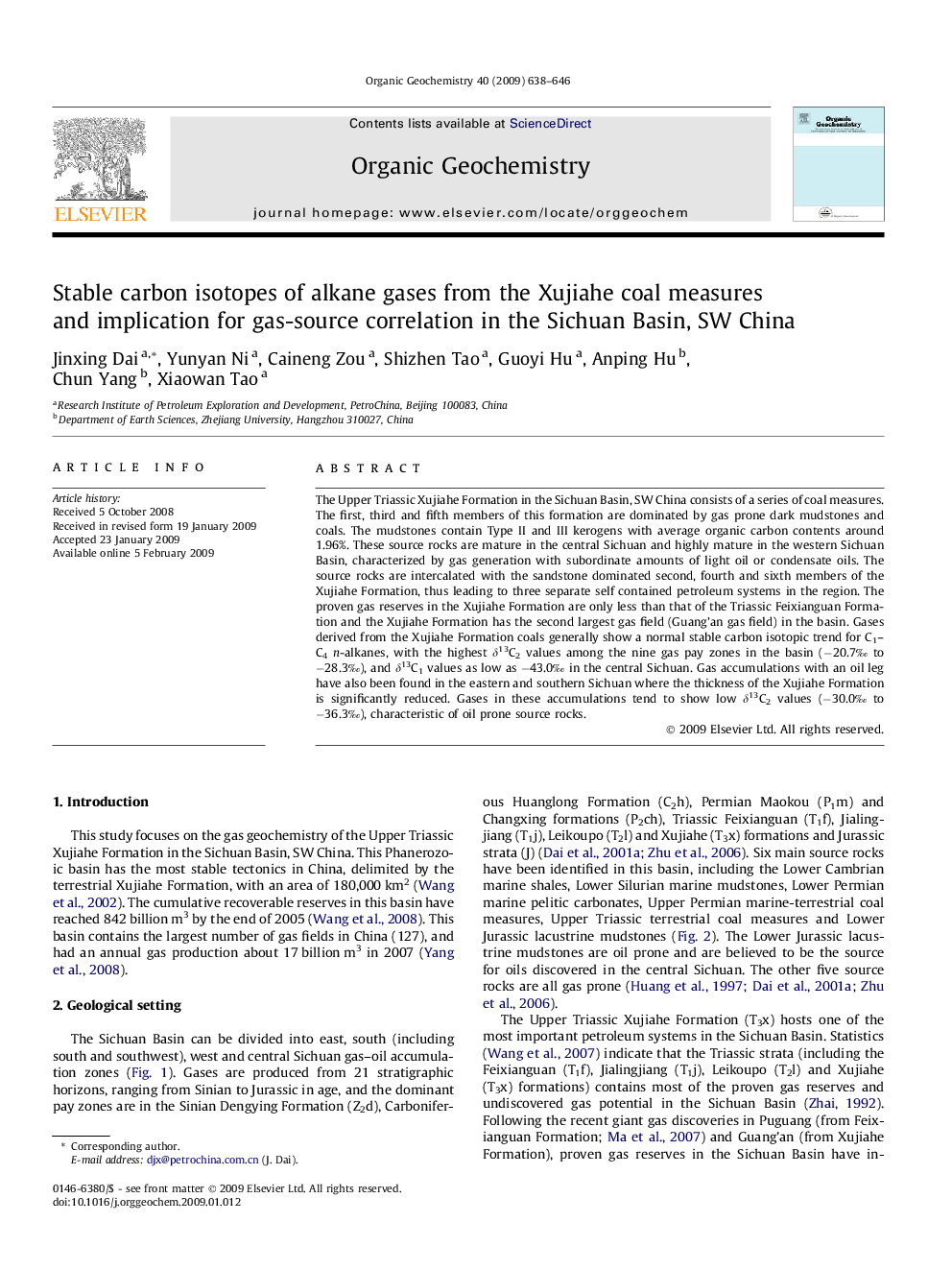

Stable carbon isotopes of alkane gases from the Xujiahe coal measures and implication for gas-source correlation in the Sichuan Basin, SW China

The Upper Triassic Xujiahe Formation in the Sichuan Basin, SW China consists of a series of coal measures. The first, third and fifth members of this formation are dominated by gas prone dark mudstones and coals. The mudstones contain Type II and III kerogens with average organic carbon contents around 1.96%. These source rocks are mature in the central Sichuan and highly mature in the western Sichuan Basin, characterized by gas generation with subordinate amounts of light oil or condensate oils. The source rocks are intercalated with the sandstone dominated second, fourth and sixth members of the Xujiahe Formation, thus leading to three separate self contained petroleum systems in the region. The proven gas reserves in the Xujiahe Formation are only less than that of the Triassic Feixianguan Formation and the Xujiahe Formation has the second largest gas field (Guang'an gas field) in the basin. Gases derived from the Xujiahe Formation coals generally show a normal stable carbon isotopic trend for C1-C4n-alkanes, with the highest δ13C2 values among the nine gas pay zones in the basin (−20.7‰ to −28.3‰), and δ13C1 values as low as −43.0‰ in the central Sichuan. Gas accumulations with an oil leg have also been found in the eastern and southern Sichuan where the thickness of the Xujiahe Formation is significantly reduced. Gases in these accumulations tend to show low δ13C2 values (−30.0‰ to −36.3‰), characteristic of oil prone source rocks.
