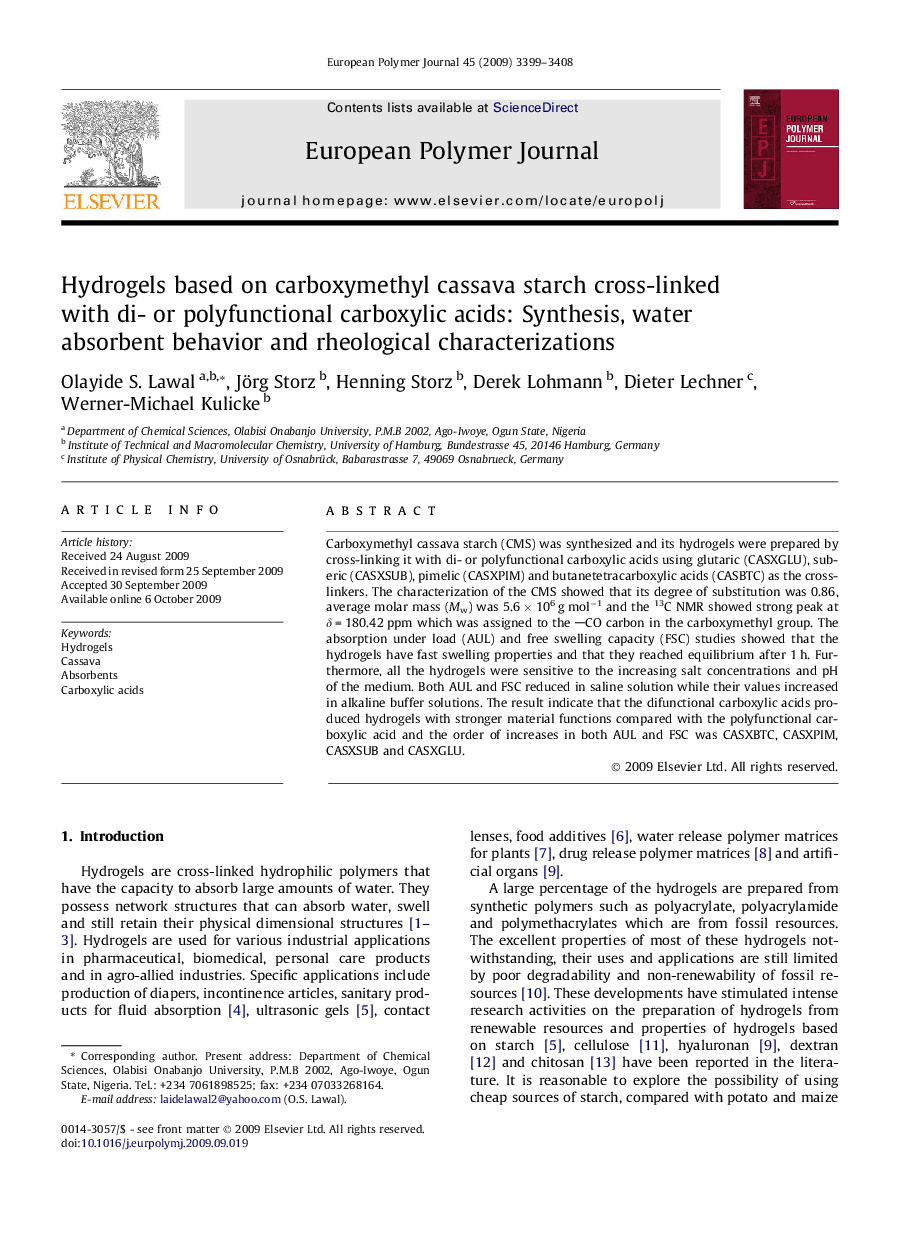

Hydrogels based on carboxymethyl cassava starch cross-linked with di- or polyfunctional carboxylic acids: Synthesis, water absorbent behavior and rheological characterizations

Carboxymethyl cassava starch (CMS) was synthesized and its hydrogels were prepared by cross-linking it with di- or polyfunctional carboxylic acids using glutaric (CASXGLU), suberic (CASXSUB), pimelic (CASXPIM) and butanetetracarboxylic acids (CASBTC) as the cross-linkers. The characterization of the CMS showed that its degree of substitution was 0.86, average molar mass (Mw) was 5.6 × 106 g mol−1 and the 13C NMR showed strong peak at δ = 180.42 ppm which was assigned to the CO carbon in the carboxymethyl group. The absorption under load (AUL) and free swelling capacity (FSC) studies showed that the hydrogels have fast swelling properties and that they reached equilibrium after 1 h. Furthermore, all the hydrogels were sensitive to the increasing salt concentrations and pH of the medium. Both AUL and FSC reduced in saline solution while their values increased in alkaline buffer solutions. The result indicate that the difunctional carboxylic acids produced hydrogels with stronger material functions compared with the polyfunctional carboxylic acid and the order of increases in both AUL and FSC was CASXBTC, CASXPIM, CASXSUB and CASXGLU.

Diagram showing the cross linking of carboxymethyl starch with suberic acid.Figure optionsDownload as PowerPoint slide
