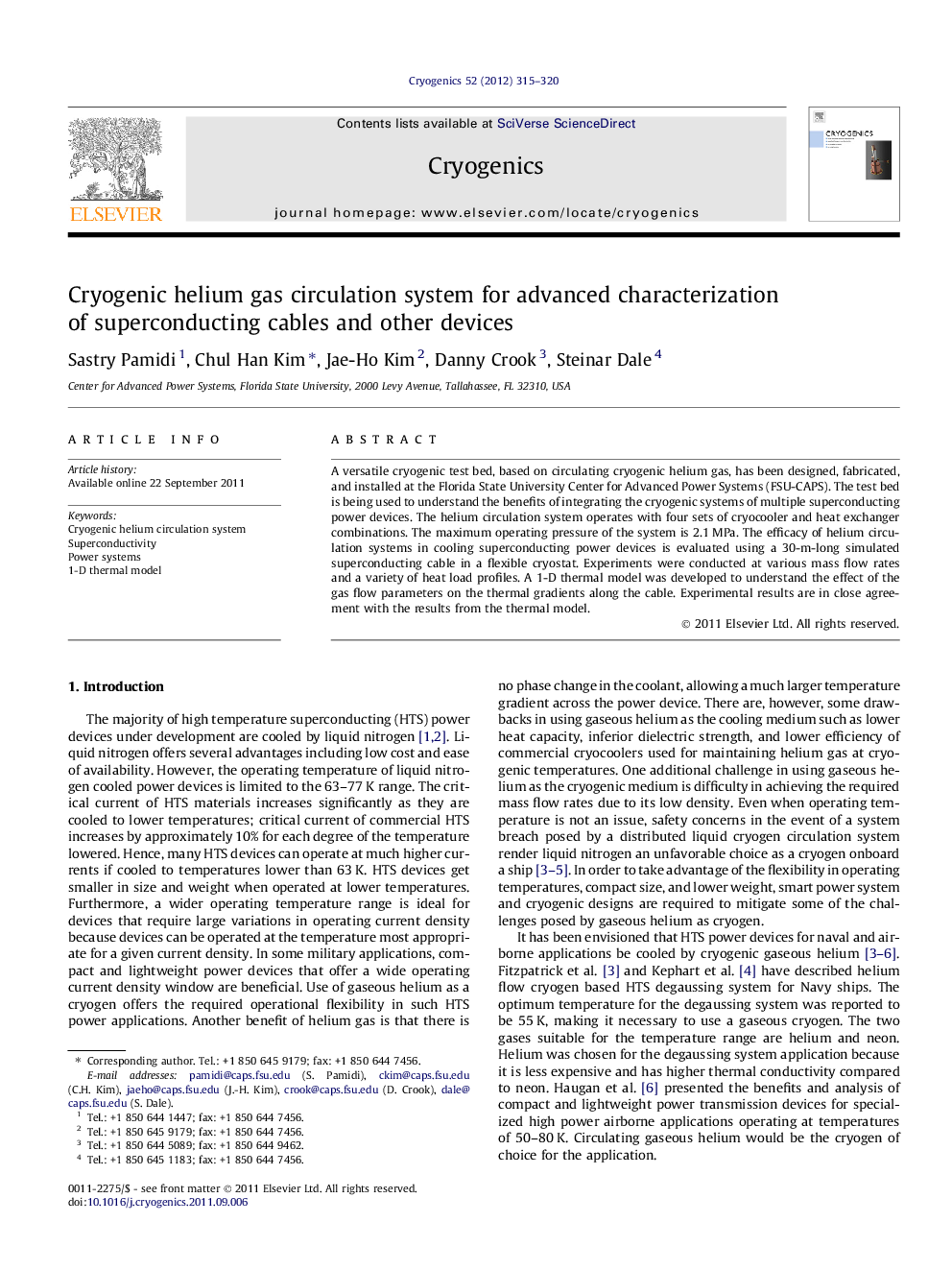

Cryogenic helium gas circulation system for advanced characterization of superconducting cables and other devices

A versatile cryogenic test bed, based on circulating cryogenic helium gas, has been designed, fabricated, and installed at the Florida State University Center for Advanced Power Systems (FSU-CAPS). The test bed is being used to understand the benefits of integrating the cryogenic systems of multiple superconducting power devices. The helium circulation system operates with four sets of cryocooler and heat exchanger combinations. The maximum operating pressure of the system is 2.1 MPa. The efficacy of helium circulation systems in cooling superconducting power devices is evaluated using a 30-m-long simulated superconducting cable in a flexible cryostat. Experiments were conducted at various mass flow rates and a variety of heat load profiles. A 1-D thermal model was developed to understand the effect of the gas flow parameters on the thermal gradients along the cable. Experimental results are in close agreement with the results from the thermal model.

► Examined cryogenic helium gas circulation for its efficacy in cooling superconducting power devices.
► Helium circulation systems are suitable for superconducting power devices operating at 40–60 K.
► Cryogenic helium gas circulation at a mass flow rate of 5 g/s can remove up to 20 W/m.
