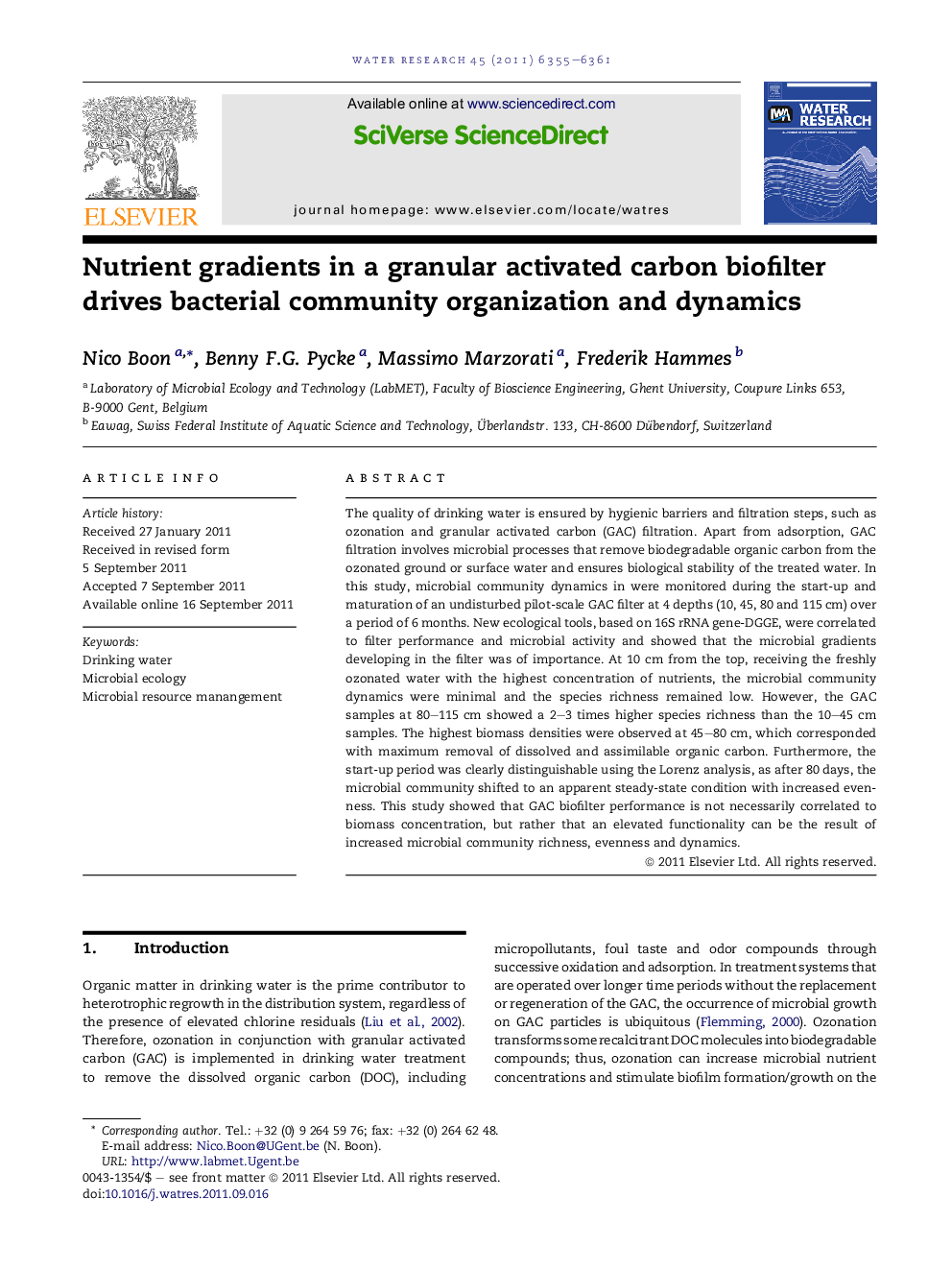

Nutrient gradients in a granular activated carbon biofilter drives bacterial community organization and dynamics

The quality of drinking water is ensured by hygienic barriers and filtration steps, such as ozonation and granular activated carbon (GAC) filtration. Apart from adsorption, GAC filtration involves microbial processes that remove biodegradable organic carbon from the ozonated ground or surface water and ensures biological stability of the treated water. In this study, microbial community dynamics in were monitored during the start-up and maturation of an undisturbed pilot-scale GAC filter at 4 depths (10, 45, 80 and 115 cm) over a period of 6 months. New ecological tools, based on 16S rRNA gene-DGGE, were correlated to filter performance and microbial activity and showed that the microbial gradients developing in the filter was of importance. At 10 cm from the top, receiving the freshly ozonated water with the highest concentration of nutrients, the microbial community dynamics were minimal and the species richness remained low. However, the GAC samples at 80–115 cm showed a 2–3 times higher species richness than the 10–45 cm samples. The highest biomass densities were observed at 45–80 cm, which corresponded with maximum removal of dissolved and assimilable organic carbon. Furthermore, the start-up period was clearly distinguishable using the Lorenz analysis, as after 80 days, the microbial community shifted to an apparent steady-state condition with increased evenness. This study showed that GAC biofilter performance is not necessarily correlated to biomass concentration, but rather that an elevated functionality can be the result of increased microbial community richness, evenness and dynamics.

Figure optionsDownload high-quality image (135 K)Download as PowerPoint slideHighlights
► A granular activated carbon biofilter was examined using DGGE analysis.
► The microbial community determined the nutrient removal along the bed and caused a stratification.
► The community richness and community dynamics increased along the bed depth.
► The community organization became more stable with increasing reactor operation time.
