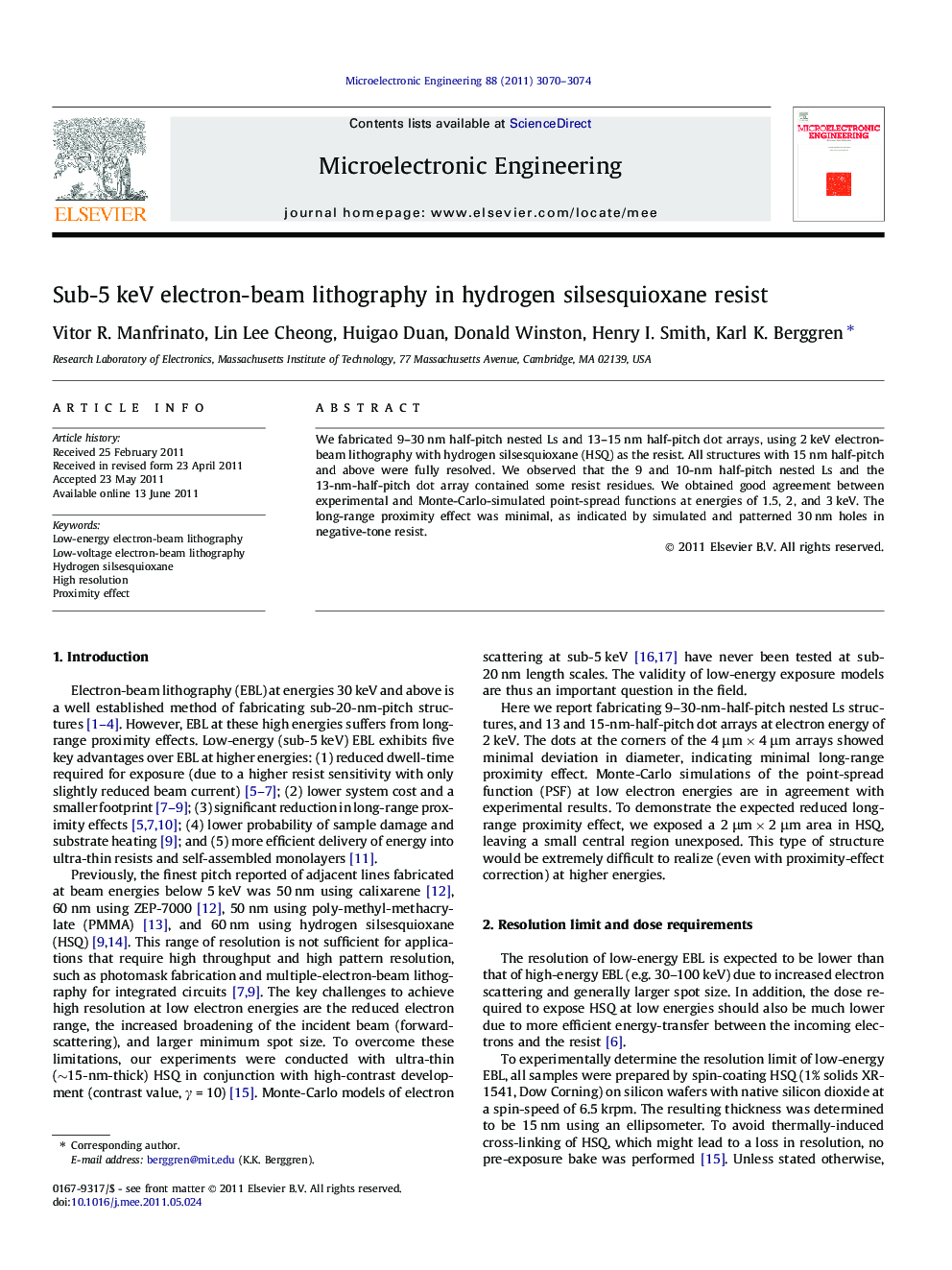

Sub-5 keV electron-beam lithography in hydrogen silsesquioxane resist

We fabricated 9–30 nm half-pitch nested Ls and 13–15 nm half-pitch dot arrays, using 2 keV electron-beam lithography with hydrogen silsesquioxane (HSQ) as the resist. All structures with 15 nm half-pitch and above were fully resolved. We observed that the 9 and 10-nm half-pitch nested Ls and the 13-nm-half-pitch dot array contained some resist residues. We obtained good agreement between experimental and Monte-Carlo-simulated point-spread functions at energies of 1.5, 2, and 3 keV. The long-range proximity effect was minimal, as indicated by simulated and patterned 30 nm holes in negative-tone resist.
